Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded MPN:HBL420W
Free Shipping
In Stock

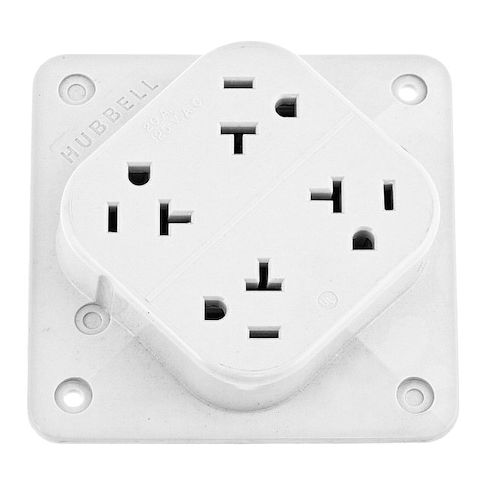

The HUBBELL 4-PLEX Quad Receptacle is a high-performance electrical outlet designed for commercial and industrial applications. Its four NEMA 5-20R outlets accommodate connection of up to four devices, making it ideal for high-demand circuits in offices, data centers, and manufacturing facilities. The receptacle features reliable connectivity, secure wire connections, and accessible break-off tabs for split wiring configurations. With its polycarbonate housing and brass contacts, it withstands extreme temperatures and provides safe operation per UL498 standards. Suitable for indoor dry locations, this receptacle is a reliable choice for heavy-duty applications where power density is critical.
Top product features:
- Four NEMA 5-20R quad outlets accommodate connection of up to four devices.
- Triple wipe brass contacts provide reliable connectivity.
- Grounding capability supports safe operation per UL498 standards.
Top product applications:
- Commercial applications
- Industrial applications
- High-demand circuit installations
The HUBBELL 4-PLEX Quad Receptacle is a surface mount, Spec grade electrical outlet intended for commercial and industrial applications. It features four NEMA 5-20R outlets rated for 20A and 125V AC, with grounding capability. The receptacle includes anchor hole and loop features to secure solid wire connections, triple wipe brass contacts for reliable connectivity, and accessible break-off tabs that allow split wiring configurations.
Key Features of the HUBBELL 4-PLEX Quad Receptacle:
- Outlet Configuration: Four NEMA 5-20R quad outlets accommodate connection of up to four devices.
- Amperage/Voltage Rating: Rated for 20A at 125V AC
- suitable for high-demand circuits.
- Mounting Type: Surface mount design allows installation on flat surfaces in indoor dry locations.
- Wiring Method: Back-wired screw terminals accommodate #12 AWG stranded or solid copper conductors.
- Contact Material: Brass power contacts are used for the electrical connections.
- Grounding: Grounded with #8-32 brass ground screw (green) included
- supports safe operation per UL498 standards.
- Casing Material: Polycarbonate housing meets UL94 V-2 flammability rating
- withstands temperatures from -40°C to +75°C (without impact).
- Certifications & Standards: Listed to UL Standard 498 File E2186, CSA Certified C22.2 No.42 File 285, NEMA WD-6 compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.50
- Package Width: 4.40
- Package Height: 1.50
- Package Weight: 0.45
