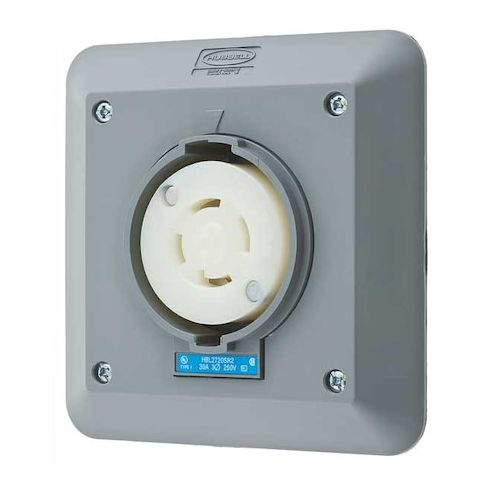

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals, Gray MPN:HBL2720SR2
Free Shipping
In Stock
The HUBBELL 30A Locking Receptacle L15-30R is a reliable and secure solution for industrial applications, providing a three-pole, four-wire design rated for 250V AC. Its twist-lock mechanism with visual alignment indicators ensures a secure connection, while its corrosion-resistant and impact-resistant construction withstands harsh environments. Suitable for dry indoor locations, this receptacle is ideal for use in manufacturing facilities, data centers, and other industrial settings where a high level of reliability and safety is required. Its compact design and easy installation make it a convenient choice for a variety of applications.
Top product features:
- Three-pole, four-wire design provides a safe and reliable electrical connection.
- Alignment arrows with lock and unlock symbols visually indicate proper connection, ensuring secure and easy plug-in.
- Screw terminals accept wire sizes from 8 AWG to 16 AWG, allowing for flexible and easy wire connection.
Top product applications:
- Industrial Settings
- Dry Indoor Locations
- Heavy-Duty Equipment
The HUBBELL 30A Locking Receptacle L15-30R is a three-pole, four-wire device rated for 250V AC and suitable for industrial applications. This twist-lock receptacle features alignment arrows with lock and unlock symbols to visually indicate proper connection, as well as visible catalog number and voltage rating even when in use. The housing is constructed from impact-modified PBT and Valox materials, providing resistance to corrosion and physical impacts.
Key Features of the HUBBELL 30A Locking Receptacle L15-30R:
- NEMA Configuration: L15-30R
- three-pole, four-wire design
- Current/Voltage Rating: Rated for 30 A at 250V AC
- Housing Material: Valox housing with gray finish
- Mount Type: Flush mount
- semi flush mounting style
- Wire Connection Type: Screw terminals accept wire sizes from 8 AWG to 16 AWG (#10 AWG standard)
- Operating Temperature Range: -40°F to 167°F (maximum continuous operation at up to 75°C)
- Resistance Properties: Construction rated as corrosion resistant and impact resistant
- intended for dry indoor locations
- Lock Type: Twist-lock mechanism with visual alignment indicators
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.70
- Package Width: 2.30
- Package Height: 5.70
- Package Weight: 0.65
