Straight Blade Plug, 5-15P, 15 A, 125V, 2 Pole, Screw Terminals, Grounded MPN:HBL8215CAT
Free Shipping
In Stock

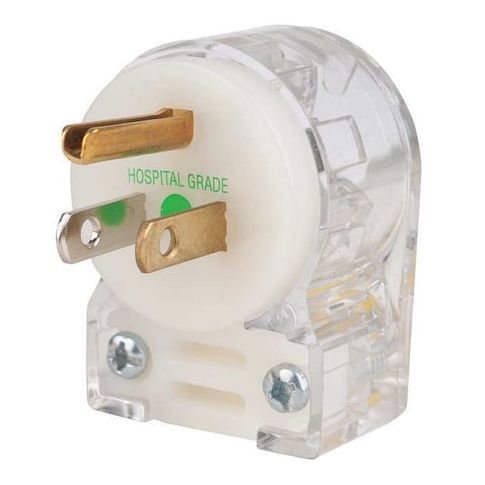

The HUBBELL Hospital Grade Insulgrip Plug is a high-quality, hospital-grade plug designed for use in a variety of applications where reliability and safety are paramount. Rated for operation at 125VAC, up to 15A, this plug features individual wiring terminals that allow for visual inspection of terminations and offsetting cord grips for secure clamping onto individual conductors. Ideal for use in hospitals, clinics, and other healthcare facilities, as well as in commercial and industrial settings, this plug provides a reliable and safe connection for a wide range of applications, including medical equipment, lighting, and more.
Top product features:
- Straight Blade Plug design allows for visual inspection of terminations
- Individual wiring terminals are enclosed for secure and organized connections
- Offsetting cord grips are designed to clamp onto individual conductors for a secure fit
Top product applications:
- Industrial Settings
- Office Buildings
- Medical Facilities
The HUBBELL 3 Wire Angle Straight Blade Plug is a hospital grade Insulgrip plug rated for operation at 125VAC, up to 15A.
Key Features of the HUBBELL Hospital Grade Insulgrip Plug:
- Amperage/Voltage: Rated for 15 A and 125 V AC operation
- NEMA Configuration: 5-15P, grounded, polarized design
- Wire Accommodation: Accepts #18 AWG to #10 AWG wire sizes via screw terminals
- Cord Diameter Range: Suitable for cords from 0.250 in to 0.655 in diameter
- Body Style: Angled connection orientation with a body length of 1.53 in
- Material & Housing: Clear polycarbonate housing
- nickel-plated finish
- corrosion resistant properties
- Grade & Standards: Hospital grade
- meets CSA Certified C22.2 No.42 File 285, Federal Specification W-C-596, UL 498 File E1706 standards
- Operating Temperature Range: -40°F minimum to +167°F maximum continuous use (75°C)
- Number of Poles/Wires/Blades: Two-pole, three-wire configuration with three blades
The HUBBELL Hospital grade Insulgrip plug rated for operation at 125VAC, up to 15A.
features individual wiring terminals that are enclosed
offsetting cord grips designed to clamp onto individual conductors
allows for visual inspection of terminations
nickel-plated finish
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.40
- Package Width: 2.40
- Package Height: 1.60
- Package Weight: 0.15
