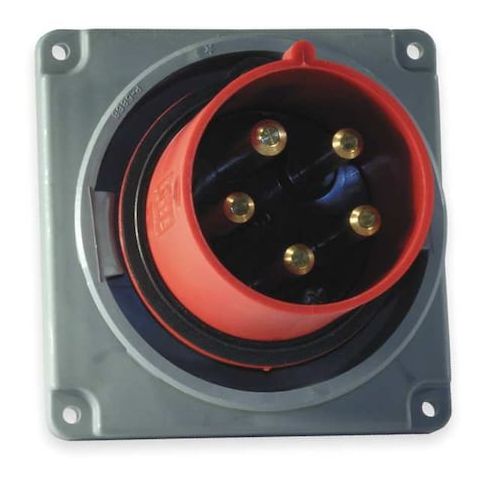

Watertight Pin & Sleeve Inlet, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL5100B7W

• The HUBBELL IEC Pin and Sleeve Inlet is a electrical inlet rated for 100A and 277/480V AC, suitable for use in industrial settings. Rated for 100A and 277/480V AC, this device features a rugged Zytel 101 nylon body and flange, with an insulated thermoplastic housing suitable for demanding environments. It is compatible with the HBL Heavy Duty series and meets CSA Certified LR280C, UL E146032, UL IEC 60309-1, and IEC 60309-2 standards.





  Key Features of the HUBBELL IEC Pin and Sleeve Inlet:





  • Current/Voltage Rating: Rated for 100A at 277/480V AC (three-phase, four-pole/five-wire configuration).


  • Ingress Protection: Gasketed sealing ring achieves IP67 rating per applicable standards
  • rated for use in wet locations.


  • Materials: Body, flange, and housing are made from Zytel 101 nylon
  • retainer is constructed from thermoset material.


  • Cord Accommodation: Accepts wire sizes from #3 AWG to #1/0 AWG via screw terminal connections.


  • Temperature Range: Rated operating temperature range is -40°C to +75°C.


  • Electrical Performance: Dielectric strength of up to 3000V AC
  • current interrupting capability at full rated load per certification requirements
  • switch-rated per manufacturer specifications.


  • Grounding Style: Grounded according to IEC conventions with shrouded pins as specified by product design.


  • Ingress Protection & Resistance Properties: IP67 rating according to CSA C22.2 No.182.1 / UL1682 standards.
