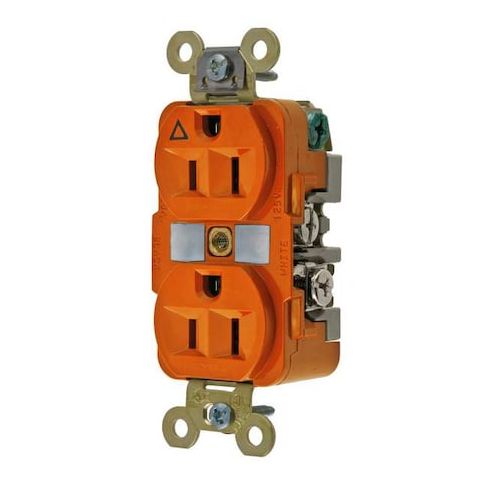

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount MPN:IG5262
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle is a reliable and versatile solution for various electrical applications. Suitable for specification-grade installations, this device features isolated ground construction, ensuring safe and efficient power distribution. Its 15A, 125V AC rating makes it ideal for use in commercial and industrial settings, such as offices, laboratories, and manufacturing facilities. The receptacle's flush mount design and NEMA 5-15R configuration ensure seamless integration with existing infrastructure, while its durable construction and certifications make it a trusted choice for demanding environments.
Top product features:
- Isolated Ground: Insulation barrier separates ground contacts from mounting strap
- Electrical Ratings: Rated at 15A, 125V AC
- NEMA Configuration: Standard NEMA 5-15R duplex outlet with polarized design (2 pole, 3-wire grounding)
Top product applications:
- Commercial Office Buildings
- Industrial Manufacturing Facilities
- High-Rise Residential Apartments
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R OR is an isolated ground duplex receptacle rated for use in specified electrical applications. This device features insulation barrier construction to isolate the ground contacts from the mounting strap, with a dedicated green grounding screw for connection to a separate insulated ground wire. It is rated for 15 amps and 125 volts AC, suitable for specification grade installations requiring isolated grounding.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Isolated Ground: Insulation barrier separates ground contacts from mounting strap
- green grounding screw allows dedicated insulated ground connection.
- Electrical Ratings: Rated at 15A, 125V AC
- rated for current interrupting up to 15A, 125V AC.
- NEMA Configuration: Standard NEMA 5-15R duplex outlet with polarized design (2 pole, 3-wire grounding).
- Wiring Options: Back and side wired screw terminals accommodate #14–#10 AWG copper stranded or solid conductors.
- Material Construction: Nylon housing and face
- reinforced PET base
- nickel-plated brass contacts
- phosphor bronze power contacts.
- Mounting Type: Flush mount installation with included stainless steel auto-ground clip and mounting hardware.
- Operating Temperatures: Maximum continuous temperature of 75°C (167°F), minimum -40°C without impact.
- Certifications & Standards: UL Listed to UL498 File E2186, CSA Certified C22.2 No.42 File 285, Federal Specification WC596G, NEMA WD-6 compliant.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 1.70
- Package Height: 3.90
- Package Weight: 0.25
