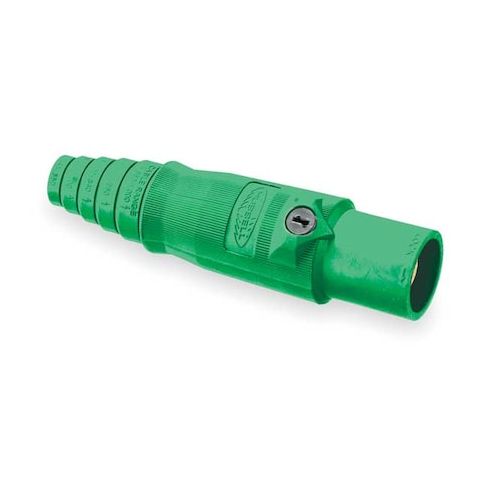

Single Pole Inline, 400 A, Male, Green MPN:HBL400MGN

• The HUBBELL Connector, Double Set Screw, Green, Male is a single pole connector intended for use in temporary electrical power distribution applications. It features a double set screw terminal connection and is compatible with Series 15 and 16 Insulgrip devices. The connector accommodates cable sizes from 2/0 to 4/0 AWG and supports up to 400 A at voltages of 600V AC or 250V DC. Its housing is constructed from thermoplastic elastomer for durability in demanding conditions.





  Key Features of the HUBBELL Connector, Double Set Screw, Green, Male:





  • Amperage Rating: Rated for up to 400 A (AC/DC)


  • Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG


  • Terminal Connection Type: Double set screw design provides a mechanical connection to the conductor


  • Contact Material: Brass single cam contact is used for electrical conductivity


  • Housing Material: thermoplastic elastomer


  • NEMA Enclosure Ratings: Suitable for use in NEMA Types 3R, 4X, and 12 enclosures


  • Voltage Rating: Supports up to 600V AC or 250V DC operation


  • Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
  • UL94 HB flammability rating


  • Mating Alignment Aid: Large raised alignment arrow assists device mating
