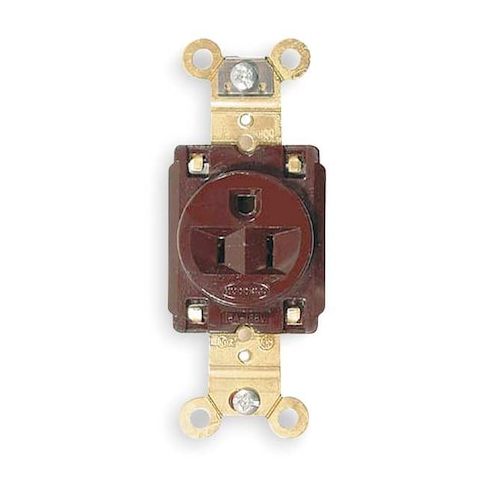

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5261
Free Shipping
In Stock
The HUBBELL HBL5262 is a rugged and reliable flush mount receptacle designed for industrial environments where durability and electrical connections are paramount. Rated for 15A and 125V AC, this specification-grade device features a traditional face shape with finder groove style, accommodating both back and side wiring methods. Its nylon face and reinforced PET base ensure impact resistance, while nickel-plated brass contacts provide secure connections. Ideal for use in manufacturing facilities, warehouses, and other high-traffic areas, this receptacle withstands harsh conditions and meets strict safety standards, including UL Listed and CSA Certified.
Top product features:
- Flush mount design with included mounting hardware
- Accommodates both back and side wiring methods, supporting #14 to #10 AWG copper conductors
- Grounded device with stainless steel auto ground clip and brass ground screw
Top product applications:
- Industrial Environments
- Commercial Buildings
- Outdoor Areas
The HUBBELL HBL5262 is a single flush mount receptacle rated for 15A and 125V AC, rated as specification grade. It features a traditional face shape with finder groove style and is intended for installation in industrial environments where durability and reliable electrical connections are required. The device accommodates both back and side wiring methods, supporting #14 to #10 AWG copper conductors.
Key Features of the HUBBELL HBL5262 Single Receptacle:
- Amperage/Voltage: Rated for 15A, 125V AC operation
- NEMA Configuration: 5-15R, single outlet type
- Mounting Type: Flush mount design with included mounting hardware
- Material Construction: Nylon face with reinforced PET base
- housing constructed from materials rated for impact resistance
- Wiring Method: Back or side wired
- screw terminals support #14–#10 AWG copper wire
- Grounding: Grounded device with stainless steel auto ground clip and brass ground screw
- Contact Material: Nickel-plated brass contacts
- Operating Temperature Range: -40°C to +75°C (without impact)
- Certification & Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant
- Dielectric Strength & Flammability Rating: Withstands minimum 2000V dielectric voltage
- top rated UL94 V-2 flammability, base rated UL94 V-0 flammability
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.60
- Package Height: 4.20
- Package Weight: 0.25
