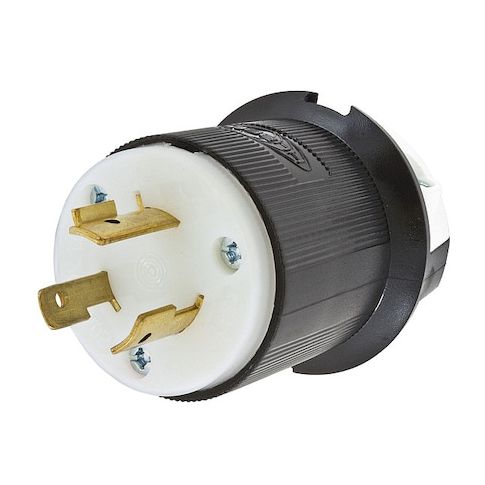

Locking Plug, L8-20P, 20 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2341

• The HUBBELL 20A Twist-Lock Plug L8-20P is a locking plug rated for use in industrial environments where a secure electrical connection is required. It features a 2-pole, 3-wire configuration and is rated for 20 amps at 480V AC. The plug includes a cord grip designed to reduce strain on terminations, along with a clear, funnel-shaped wire entry.





  Key Features of the HUBBELL - 20A Twist-Lock Plug L8-20P:





  • Amperage/Voltage Rating: Rated for 20 A at 480V AC single phase


  • NEMA Configuration: L8-20P (locking)


  • Cable/Cord Range: Accepts listed portable cords within specified diameter range


  • Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire via screw terminals


  • Material Construction: nylon housing
  • brass blades
  • chemical and impact resistant properties


  • Operating Temperature Range: Maximum continuous temperature of 75°C, minimum -40°C (without impact)


  • Performance Ratings: Withstands dielectric voltage up to 2,000V minimum
  • certified current interrupting at full rated current


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL Listed under UL498


  • Ingress Protection/Use Conditions: IP20 rating
  • intended for indoor dry locations unless protected by additional means
