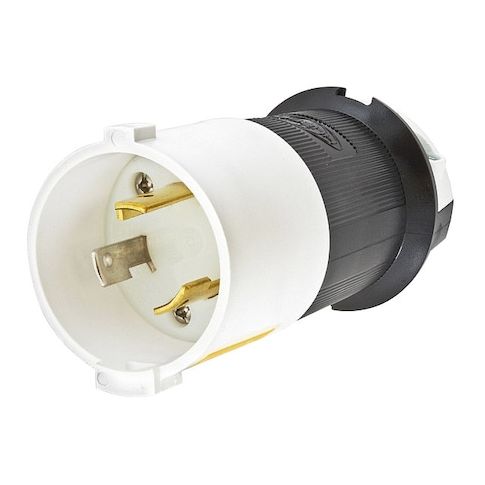

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL2611S
Free Shipping
In Stock
The HUBBELL 30A Locking Plug L5-30P is a reliable and durable industrial-grade locking plug designed for use in electrical connections in indoor, dry locations. Its ribbed nylon housing and cord grip design provide enhanced grip and resistance to impact and chemicals, while the integral dust shield protects the wiring chamber from contaminants. Suitable for 125V AC single-phase applications at up to 30 amps, this plug is ideal for use in a variety of applications, including manufacturing, construction, and commercial settings, where safety and reliability are paramount. Its compact design and easy installation make it a convenient solution for electrical connections.
Top product features:
- Ribbed nylon housing for enhanced grip and resistance to impact and chemicals
- Cord grip design reduces strain on wire terminations
- Integral dust shield keeps contaminants out of the wiring chamber
Top product applications:
- Electrical connections in indoor, dry locations
- Industrial settings where a secure and reliable connection is required
- Equipment installations that need to meet specific safety and regulatory standards
The HUBBELL 30A Locking Plug L5-30P is an industrial-grade locking plug intended for use in electrical connections in indoor, dry locations. It features a ribbed nylon housing for enhanced grip and resistance to impact and chemicals, along with a cord grip design intended to reduce strain on wire terminations. The integral dust shield provides additional protection by keeping contaminants out of the wiring chamber.
Key Features of the HUBBELL 30A Locking Plug L5-30P:
- NEMA Configuration: L5-30P, rated for 125V AC single-phase applications at up to 30 amps
- Wire Accommodation: Accepts wire sizes from 16 AWG to 8 AWG using screw terminals
- Cord Size Compatibility: Suitable for cable diameters between 0.36 in and 0.93 in
- Material Construction: Nylon housing with brass blades
- constructed with materials rated for chemical and impact resistance
- Temperature Range: Rated for operation within a temperature range of -40°C to +75°C (when not subject to impact)
- Flammability Rating: Meets UL 94 HB or better standards
- Shrouded Design & Polarization: Features a polarized blade arrangement
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL 498
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.35
