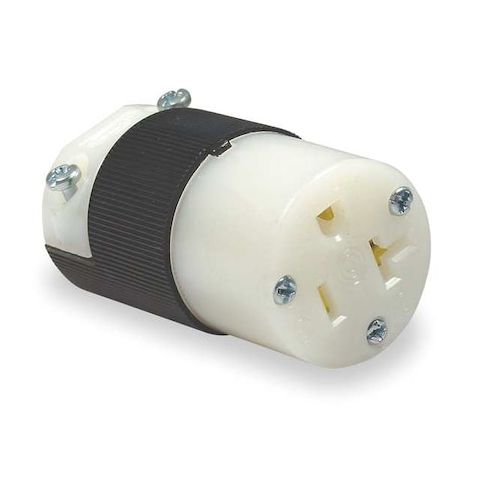

Straight Blade Connector, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Screw Terminals, Black, White MPN:HBL5369C

• The HUBBELL 5-20R Straight Blade Connector is a connector body rated for use with 20A, 125V AC circuits. It features a straight blade configuration (NEMA 5-20R) and accommodates wire sizes from #18 AWG to #10 AWG using screw terminals. The housing is constructed from thermoplastic elastomer and nylon

• suitable for indoor dry locations unless protected by other means.




  Key Features of the HUBBELL 5-20R Straight Blade Connector:





  • Amperage/Voltage Rating: Rated for 20 A at 125 V AC


  • NEMA Configuration: NEMA 5-20R
  • includes polarization and grounding features per NEMA 5-20R configuration


  • Cord Range: Accepts cords from 0.250" to 0.655" diameter (#18–#10 AWG stranded copper wire)


  • Connection Type: Screw terminals with individual wiring terminals completely enclosed


  • Housing Material: Thermoplastic elastomer body with nylon insulation


  • Contact Material: brass contacts


  • Cord Grip Design: Offsetting cord grips clamp on individual conductors to secure connection


  • Operating Temperature Range: -40°C (minimum without impact) to +75°C (maximum continuous)


  • Standards Compliance: UL Listed, CSA Certified, NEMA WD-6 compliant


  • Ingress Protection/Resistance Properties: IP20 rated
  • moisture, dust, and weather resistant construction suitable for indoor dry conditions unless protected by other means
