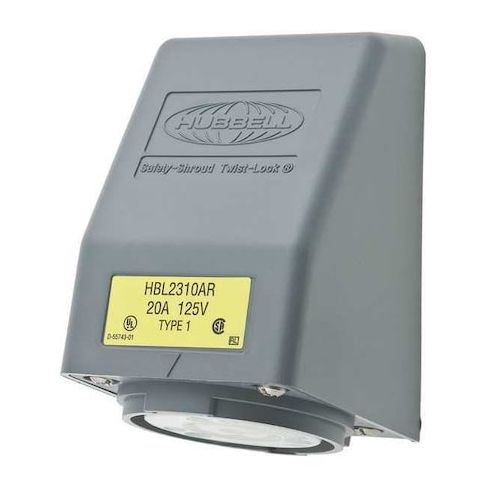

Flanged Locking Receptacle, L5-20R, 20 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Gray MPN:HBL2310AR
Free Shipping
In Stock
The HUBBELL 20A Angle Twist-Lock Receptacle is a reliable and versatile solution for indoor electrical applications. Designed for use in dry locations, this flanged locking receptacle features a twist-lock mechanism that accepts both shrouded and standard NEMA locking plugs, making it compatible with a wide range of electrical equipment. Rated for 20 amps at 125V AC single phase, it's perfect for powering small to medium-sized appliances and equipment, such as computers, printers, and lighting fixtures. Its corrosion-resistant and impact-resistant construction ensures durability and long-term performance, making it an ideal choice for commercial and industrial settings.
Top product features:
- The HUBBELL 20A Angle Twist-Lock Receptacle features a twist-lock mechanism that accepts both shrouded and standard NEMA locking plugs.
- It includes alignment arrows with lock/unlock symbols to assist with engagement verification.
- The device is rated for 20 A at 125V AC single phase and has a 2-pole, 3-wire grounded design.
Top product applications:
- Dry indoor locations
- Electrical equipment rated at 125V AC and up to 20 amps
- Motors rated up to 1 hp
The HUBBELL 20A Angle Twist-Lock Receptacle (L5-20R) is a flanged locking receptacle intended for use in dry, indoor locations. It features a twist-lock mechanism and accepts both shrouded and standard NEMA locking plugs, compatible with electrical equipment rated at 125V AC and up to 20 amps. The device includes alignment arrows with lock/unlock symbols to assist with engagement verification, and its catalog number along with color-coded voltage rating remain visible during operation.
Key Features of the HUBBELL 20A Angle Twist-Lock Receptacle:
- NEMA Configuration: L5-20R
- 2-pole, 3-wire grounded design
- Current/Voltage Rating: Rated for 20 A at 125V AC single phase
- Material Construction: Engineered thermoplastic Valox housing and flange
- nylon components
- brass contacts and springs
- Resistance Properties: Construction incorporates materials identified as corrosion resistant and impact resistant
- suitable for specified application ratings
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)
- Wire Size Compatibility: Accepts #14 to #8 AWG copper wire via screw terminals
- Mounting Type: Flush mount with rectangular flanged shape
- Horsepower Rating: Rated up to 1 hp
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.20
- Package Height: 3.40
- Package Weight: 0.70
