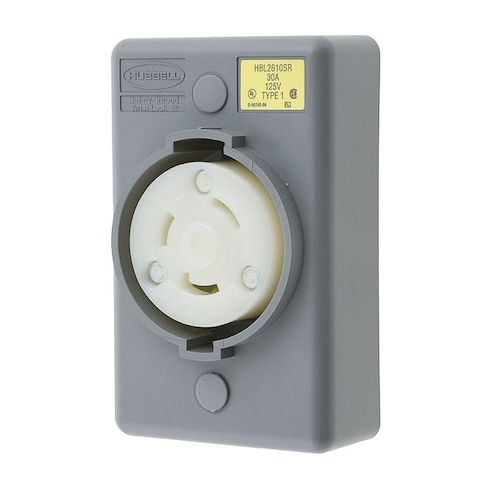

Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Surface Mount, Screw Terminals MPN:HBL2610SR
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Receptacle L5-30R is a reliable and secure locking receptacle designed for use in indoor, dry locations. Providing a twist-lock mechanism with visual indicators for alignment and lock/unlock status, this receptacle ensures safe and reliable electrical connections. Rated for 30 amps at 125V AC, it's perfect for applications such as industrial equipment, machinery, and commercial settings. With its corrosion- and impact-resistant construction, it can withstand harsh environments and heavy use. Its surface mount design makes it easy to install, and its compliance with CSA and UL standards ensures it meets the highest safety standards.
Top product features:
- Twist-lock mechanism with alignment arrows and lock/unlock symbols for visual indicators of alignment and lock/unlock status.
- Supports 2-pole, 3-wire configurations at 125V AC.
- Accepts wire sizes from #16 AWG to #8 AWG (#10 AWG standard) with screw terminal wire connections.
Top product applications:
- Indoor electrical connections in dry locations
- Heavy-duty equipment in industrial settings
- Commercial or residential electrical installations requiring 30A connections
The HUBBELL 30A Twist-Lock Receptacle L5-30R is a locking receptacle designed to provide locking electrical connections in indoor, dry locations. It features a twist-lock mechanism with alignment arrows and lock/unlock symbols for visual indicators for alignment and lock/unlock status. The device supports 2-pole, 3-wire configurations at 125V AC and is rated for up to 30 amps.
Key Features of the HUBBELL 30A Twist-Lock Receptacle L5-30R:
- NEMA Configuration: L5-30R
- single phase, grounded
- Current/Voltage Rating: Rated for 30 A at 125V AC
- Material Construction: Engineered thermoplastic (Valox) housing and flange
- impact modified PBT body
- constructed with materials specified as corrosion- and impact-resistant by the manufacturer
- Connection Orientation: Straight with screw terminal wire connections
- Wire Size Compatibility: Accepts wire sizes from #16 AWG to #8 AWG (#10 AWG standard)
- Mounting Type: Surface mount design
- non-flanged
- Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)
- Horsepower Rating: Rated for use with equipment drawing up to 2 horsepower, per manufacturer specifications
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 listed
- Coding & Identification: Catalog number and color-coded voltage rating visible during use
- terminals identified per UL498 (X, Y, Z, White, Green)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.80
- Package Width: 3.00
- Package Height: 2.60
- Package Weight: 0.45
