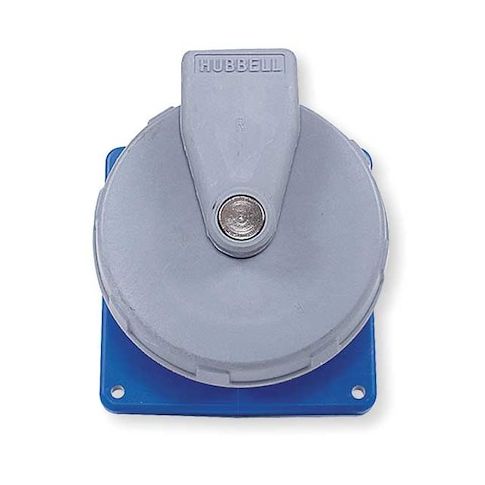

Watertight Pin & Sleeve Receptacle, 20 A, 120/208V AC, Single Phase, 3 Pole, IEC Grounding, Blue MPN:HBL520R9W

• The HUBBELL IEC Pin and Sleeve Receptacle, 20A, 208V is a watertight electrical device rated for use with 20A, 120/208V AC single phase applications. This receptacle features a rugged thermoplastic housing made from Zytel 101 nylon and is constructed to operate within the specified ratings. It accommodates wire sizes from #14 AWG to #10 AWG and supports straight connection orientation with pressure terminal screws for secure wiring.





  Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 20 amps at 120/208V AC single phase


  • Watertight Construction: IP67 ingress protection with neoprene gasket
  • suitable for wet environments


  • Material: Housing, body, and flange constructed from Zytel 101 nylon thermoplastic
  • retainer made of high-impact thermoset


  • Cord Size Compatibility: Accepts cord sizes ranging from #14 AWG to #10 AWG (maximum wire size up to 8 AWG)


  • Connection Type: Connection using pressure terminal screws


  • Flammability & Temperature Ratings: UL 94 HB or better flammability rating
  • operating temperature range -40°C to +75°C


  • Resistance Properties: Materials are corrosion resistant, impact resistant, and UV stabilized


  • Standards Compliance: CSA Standard C22.2 No.182.1
  • UL Classified/IEC 60309-1/-2
  • UL Listed File E146032


  • Design Features: Color coded split sleeves
  • shrouded design with spring-loaded cap for added protection
