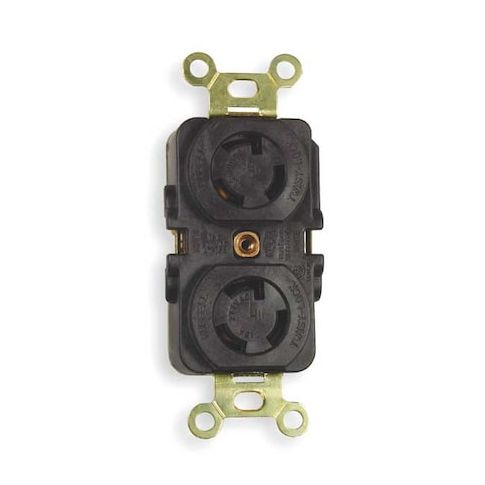

Locking Receptacle, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals MPN:HBL4750
Free Shipping
In Stock
The HUBBELL 15A Locking Receptacle L7-15R is a heavy-duty electrical receptacle designed for industrial-grade applications in indoor dry locations. With its twist-lock mechanism, it prevents accidental disconnection and ensures reliable power supply. Suitable for single-phase, 277V AC circuits, this receptacle is ideal for use in commercial and industrial settings, such as manufacturing facilities, offices, and warehouses. Its reinforced thermoplastic construction and all-brass contacts provide long-lasting performance and conductivity. The receptacle is easy to install with its flush mount design and screw terminals, making it a convenient solution for a variety of industrial applications.
Top product features:
- The HUBBELL 15A Locking Receptacle L7-15R includes a twist-lock mechanism to prevent accidental disconnection.
- The device is constructed from reinforced thermoplastic (Valox) with all-brass contacts for reliable conductivity.
- The device accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals.
Top product applications:
- Industrial Control Panels
- Heavy-Duty Machinery
- Commercial Lighting Systems
The HUBBELL 15A Locking Receptacle L7-15R is an industrial-grade electrical receptacle rated for use in indoor dry locations. It includes a twist-lock mechanism to prevent accidental disconnection and accommodates single-phase, 277V AC circuits with two poles and three wires. The device is constructed from reinforced thermoplastic (Valox) with all-brass contacts for reliable conductivity and includes a steel mounting strap for flush installation.
Key Features of the HUBBELL 15A Locking Receptacle L7-15R:
- Amperage/Voltage: Rated for 15 A at 277V AC, suitable for heavy-duty industrial applications
- NEMA Configuration: L7-15R, polarized design with twist-lock functionality
- Construction: Reinforced thermoplastic body with single-piece brass contacts
- impact resistant
- Mounting Type: Flush mount with included screw-mount hardware and steel mounting strap
- Wire Accommodation: Accepts #18 AWG to #10 AWG solid or stranded copper wire via screw terminals
- Operating Temperature Range: -40°C to +75°C (without impact)
- NEMA Enclosure/IP Rating: NEMA Type 1 enclosure, IP20 rated
- intended for indoor use only unless further protected
- Certifications: Listed to UL 498, CSA C22.2 No.42 certified, Federal Specification W-C-596 compliant
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 2.00
- Package Height: 4.50
- Package Weight: 0.30
