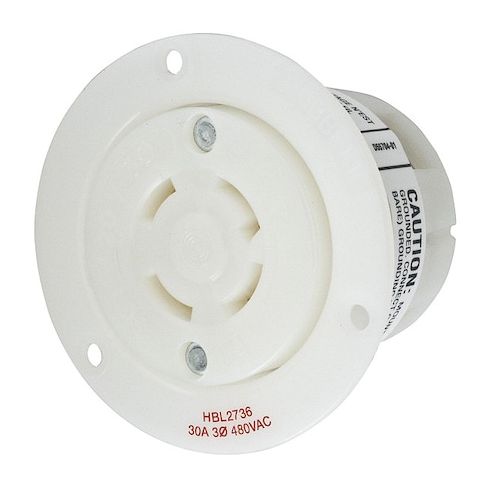

Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount, White MPN:HBL2736
Free Shipping
In Stock
The HUBBELL 30A Flanged Twist-Lock Receptacle is a reliable and secure solution for industrial settings, supporting up to 30 amps at 480V AC in three-phase, four-wire applications. Its twist-lock mechanism ensures a safe and easy connection with compatible plugs. Constructed from impact-resistant nylon, this receptacle is designed for flush mounting and features a round flange for added protection. Suitable for use in dry locations, it provides a secure and efficient way to power equipment, making it an ideal choice for industrial settings, including manufacturing facilities, warehouses, and construction sites.
Top product features:
- The receptacle is a locking receptacle rated for use in indoor, dry locations.
- The receptacle features a twist-lock mechanism for connection with compatible plugs.
- The receptacle is constructed from impact-resistant nylon and includes a round flange for flush mounting.
Top product applications:
- Industrial settings
- Commercial buildings
- Data centers
The HUBBELL 30A Flanged Twist-Lock Receptacle is a locking receptacle rated for use in indoor, dry locations. This three-pole, four-wire device supports up to 30 amps at 480V AC and features a twist-lock mechanism for connection with compatible plugs. The receptacle is constructed from impact-resistant nylon and includes a round flange for flush mounting.
Key Features of the HUBBELL 30A Flanged Twist-Lock Receptacle:
- NEMA Configuration: L16-30R, rated for 3-phase, 4-wire applications at 480V AC.
- Material: Nylon housing and natural white nylon flange
- suitable for use in industrial settings.
- Mounting Type: Flush mount design with included mounting screws
- round flanged shape.
- Terminals: Backwired screw terminals accept #8–#16 AWG solid or stranded copper wire
- accepts slotted, Phillips, and Robertson drivers.
- Performance Ratings: Rated dielectric voltage: minimum 2,000V
- maximum continuous operating temperature: 75°C (167°F)
- minimum operating temperature: -40°C (-40°F) without impact.
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596
- listed to UL 498.
- Ingress Protection: Rated IP20 for indoor use in dry environments unless additional protection is provided.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.30
- Package Width: 2.90
- Package Height: 3.80
- Package Weight: 0.35
