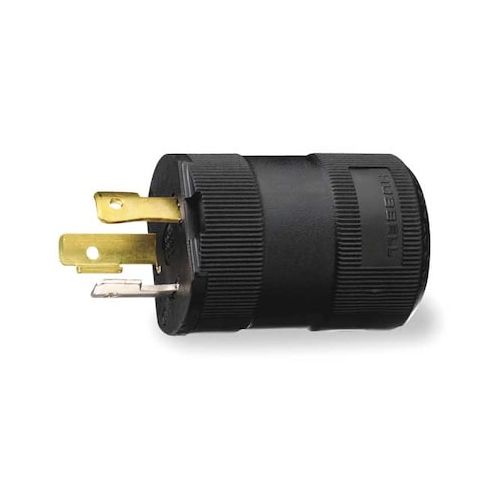

Locking Plug, L7-15P, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL4773VBK
Free Shipping
In Stock
The HUBBELL 15A Locking Plug L7-15P is a reliable and durable electrical plug designed for industrial use. Suitable for harsh environments, this plug features a nylon housing that withstands chemical exposure and impact, ensuring secure connections and long-lasting performance. With a wide range of cable diameters and wire sizes supported, it's ideal for applications such as power distribution, equipment connection, and testing. The plug's locking mechanism provides added security, while its CSA certification and UL listing ensure compliance with industry standards. Its compact size and lightweight design make it easy to integrate into existing systems, reducing downtime and increasing productivity.
Top product features:
- Accommodates cable diameters from 0.220 to 0.660 inches
- Supports wire sizes ranging from #18 AWG to #12 AWG stranded copper wire
- Rated for 15 A at 277V AC, single phase
Top product applications:
- Industrial electrical equipment
- Heavy duty machinery
- Outdoor lighting installations
The HUBBELL 15A Locking Plug L7-15P is a locking electrical plug suitable for use in industrial environments. It features a nylon housing that is rated to withstand specified impacts, with cord grips that are intended to secure conductors and help manage strain on wiring terminals. This plug accommodates cable diameters from 0.220 to 0.660 inches and supports wire sizes ranging from #18 AWG to #12 AWG stranded copper wire.
Key Features of the HUBBELL 15A Locking Plug L7-15P:
- Amperage/Voltage Rating: Rated for 15 A at 277V AC, single phase
- NEMA Configuration: L7-15P (2-pole, 3-wire, grounded)
- Body Material: Nylon housing is rated for chemical exposure and impact according to manufacturer specifications
- Cord Range: Accepts all listed portable cords within the range of 0.220"–0.660"
- Wire Connection Type: Screw terminals with hinged wiring style
- Dielectric Strength: Rated dielectric strength: minimum 2,000V
- Operating Temperature Range: -40°C to +75°C (without impact)
- Maximum Horsepower Rating: 2 hp
- Standards Compliance: Certified to CSA C22.2 No.42
- UL Listed under UL498
- Federal Specification W-C-596
- IP Rating: IP20 – suitable for indoor dry locations unless protected by additional means
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.90
- Package Width: 1.70
- Package Height: 1.60
- Package Weight: 0.15
