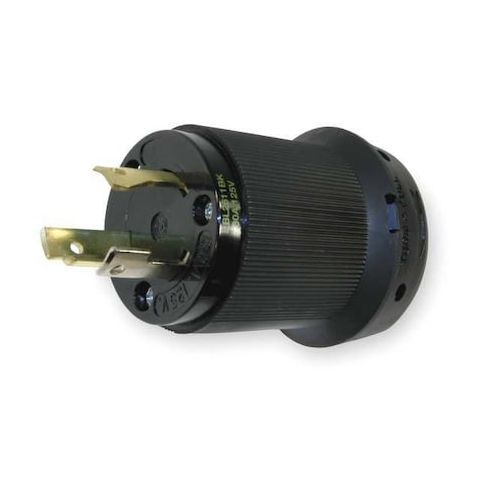

Locking Plug, L5-30P, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL2611BK
Free Shipping
In Stock
The HUBBELL 30A Locking Plug L5-30P is a reliable and durable electrical plug designed for use in demanding environments. Rated for 30 amps at 125V AC, it features a locking mechanism that secures connections and accommodates 2 poles and 3 wires. Its clear wire entry and integral dust shield protect against contaminants, making it ideal for applications such as heavy equipment, industrial machinery, and construction sites. The plug's chemical and impact resistance, along with its operating temperature range of -40°C to +75°C, ensure reliable performance in harsh conditions. Perfect for demanding applications where reliability and safety are paramount.
Top product features:
- The HUBBELL 30A Locking Plug L5-30P features a locking mechanism that secures the connection.
- It accommodates 2 poles and 3 wires.
- The plug includes a clear, funnel-shaped wire entry to facilitate wiring.
Top product applications:
- Industrial Power Distribution
- Heavy-Duty Equipment Installation
- Construction Site Power Distribution
The HUBBELL 30A Locking Plug L5-30P is an electrical plug rated for use in demanding environments. It features a locking mechanism that secures the connection and accommodates 2 poles and 3 wires, rated for 30 amps at 125V AC. The plug includes a clear, funnel-shaped wire entry to facilitate wiring and an integral dust shield that helps protect the internal chamber from contaminants.
Key Features of the HUBBELL - 30A Locking Plug L5-30P:
- Amperage/Voltage: Rated for 30 A, 125V AC
- NEMA Configuration: L5-30P (locking type)
- Cord Range: Accepts cables from 0.360" to 0.930" diameter (#16 AWG to #8 AWG stranded copper wire)
- Wire Connection Type: Screw terminals with clear entry design
- Material: Nylon housing
- brass blades
- Resistance Properties: Rated as chemical resistant and impact resistant
- Operating Temperature Range: -40°C minimum (without impact) to +75°C maximum continuous use
- Standards Compliance: UL 498 listed, CSA C22.2 No.42 certified, Federal Specification W-C-596
- Ingress Protection Rating: IP20 (indoor dry locations unless otherwise protected)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.50
- Package Height: 4.00
- Package Weight: 0.50
