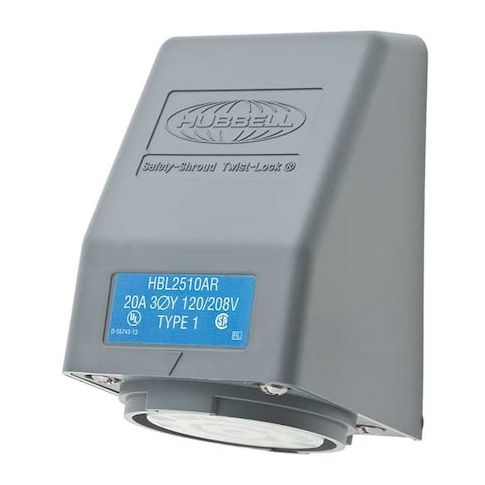

Flanged Locking Receptacle, L21-20R, 20 A, 120/208V AC, Three Phase, 4 Pole, Flush Mount, Gray MPN:HBL2510AR
Free Shipping
In Stock
The HUBBELL 20A Angle Twist-Lock Receptacle is a reliable and secure solution for indoor, dry locations requiring three-phase power. Its twist-lock mechanism ensures a safe and easy connection, while the alignment arrows and lock/unlock symbols provide visual confirmation. This receptacle supports 20 amps of current at 120/208V AC, making it suitable for applications such as industrial equipment, machinery, and commercial settings. Its flush mount design and stainless steel flange ensure durability and protection from the elements. With a horsepower rating of up to 2 hp, this receptacle is perfect for powering heavy machinery and equipment in various industries.
Top product features:
- Twist-lock mechanism with alignment arrows and lock/unlock symbols for visual confirmation of proper connection.
- Supports three-phase power at 120/208V AC.
- Accepts #16 AWG – #8 AWG copper wire only via screw terminals.
Top product applications:
- Industrial Settings
- Commercial Buildings
- Heavy-Duty Machinery
The HUBBELL 20A Angle Twist-Lock Receptacle is a flanged locking receptacle rated for use in indoor, dry locations per manufacturer specifications. It features a twist-lock mechanism with alignment arrows and lock/unlock symbols for visual confirmation of proper connection. The device supports three-phase power at 120/208V AC, with a current rating of 20 amps and accommodates #16 AWG to #8 AWG solid or stranded copper wire via screw terminals.
Key Features of the HUBBELL 20A Angle Twist-Lock Receptacle:
- NEMA Configuration: L21-20R, four poles and five wires
- Contact Material: Brass contacts provide electrical connectivity
- Housing & Flange Material: Valox housing
- stainless steel flange (rectangular shape)
- Mounting Type: Flush mount design with shrouded construction
- Temperature Range: Operates from -40°F to 167°F (maximum continuous temperature 75°C)
- Horsepower Rating: Rated up to 2 hp
- Wire Size Compatibility: Accepts #16 AWG – #8 AWG copper wire only
- Coding & Identification: Catalog number and color-coded voltage rating visible during use
- terminals identified per UL 498
- NEMA Enclosure Rating/IP Rating: NEMA Type 1 / IP20 for indoor applications
- Resistance Properties: Meets V2 or better flammability requirements per UL94/CSA standards
- Special Feature: Includes cover for added protection when not in use
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.20
- Package Height: 3.40
- Package Weight: 0.80
