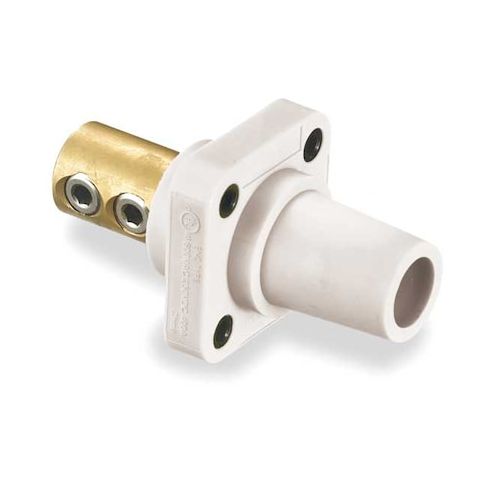

Receptacle, Double Set Screw, White MPN:HBLFRW
Free Shipping
In Stock
The HUBBELL Receptacle, Double Set Screw, White is a reliable and versatile panel mount receptacle designed for use in a wide range of applications, including commercial and industrial settings. Rated for up to 400 amps, this receptacle can handle high-power equipment and devices, making it ideal for use in data centers, server rooms, and other high-density environments. Its double set screw terminal connection and brass contacts ensure secure and reliable connections, while its thermoplastic elastomer construction provides durability and resistance to wear and tear. Perfect for use in indoor dry locations, this receptacle meets industry standards and is UL Listed.
Top product features:
- Accommodates wire sizes from #4 AWG to 4/0 AWG
- Rated for operation at up to 400 amps and within voltage ranges of 600V AC or 250V DC
- Includes a double set screw terminal connection
Top product applications:
- Industrial Control Panels
- Automotive Wiring Harnesses
- Electrical Distribution Systems
The HUBBELL Receptacle, Double Set Screw, White is a single pole panel mount receptacle rated for use in applications requiring up to 400 amps. This female device includes a double set screw terminal connection and can be used with Series 16 components as specified by the manufacturer. It accommodates wire sizes from #4 AWG to 4/0 AWG and is rated for operation at up to 400 amps and within voltage ranges of 600V AC or 250V DC. The housing material: thermoplastic elastomer
- intended for indoor dry locations, unless otherwise protected according to installation requirements.
Key Features of the HUBBELL Receptacle, Double Set Screw, White:
- Amperage Rating: Rated for up to 400 A (AC/DC)
- Voltage Rating: Supports up to 600V AC or 250V DC
- Cable Range: Accepts #4 AWG to #4/0 AWG conductors
- Terminal Connection Type: Includes a double set screw terminal connection
- Contact Material: Brass contacts used as contact material
- Mounting Style: Panel mount with through hole mounting hardware
- NEMA Enclosure Ratings: Suitable for NEMA Types 12K, 3R, and 4X enclosures when properly installed
- Industry Standards: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements
- Housing Material: Thermoplastic elastomer construction
- white color finish
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 2.50
- Package Height: 2.50
- Package Weight: 0.75
