Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8310I
Free Shipping
In Stock

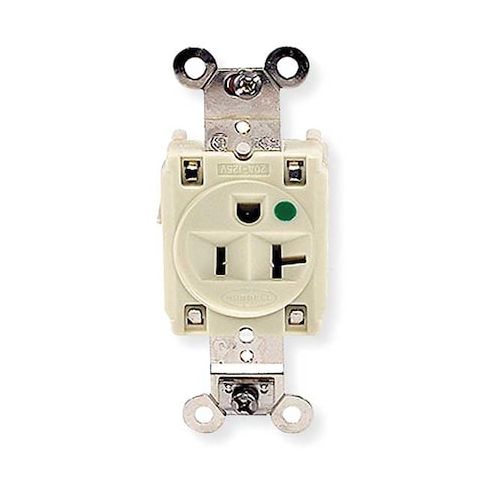

The HUBBELL 5-20R Hospital Grade Single Receptacle is a reliable and versatile electrical outlet designed for heavy-duty applications in indoor environments. With a 20A, 125V AC rating, it meets hospital-grade standards and is suitable for use in hospitals, clinics, and healthcare facilities. This flush-mount receptacle features a grounded configuration with back and side wired screw terminals, accommodating #12–#10 AWG stranded or solid copper wire. Its robust design and four-point grounding system ensure safe and continuous operation, making it an ideal choice for applications where reliability and safety are paramount.
Top product features:
- Flush mount design allows for a sleek and compact installation.
- Back and side wired screw terminals accommodate #12–#10 AWG stranded or solid copper wire.
- Four-point grounding system designed to support ground continuity.
Top product applications:
- Hospital settings
- Extra heavy duty commercial applications
- Indoor environments
The HUBBELL 5-20R Hospital Grade Single Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Rated for extra heavy duty applications, this single straight blade receptacle features a grounded configuration with back and side wired screw terminals. It meets hospital grade standards as specified
- suitable for use in indoor environments as rated.
Key Features of the HUBBELL 5-20R Hospital Grade Single Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC
- NEMA Configuration: 5-20R, single outlet
- Mounting Type: Flush mount with included mounting hardware
- Wiring Method: Back and side wired screw terminals
- accommodates #12–#10 AWG stranded or solid copper wire
- Contact Material: Brass contacts with nickel-plated bypass contact design
- Grounding System: Four-point grounding system designed to support ground continuity
- Material Construction: Impact modified PBT/reinforced PET body with nylon housing
- impact-resistant deep face design
- Dielectric Strength & Flammability Ratings: Withstands minimum 2,000V dielectric voltage
- UL94 V-0/V-2/5VA flammability ratings (top/base)
- Circuit Interrupting Capability: Certified for current interrupting at full rated current
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 1.70
- Package Height: 1.80
- Package Weight: 0.20
