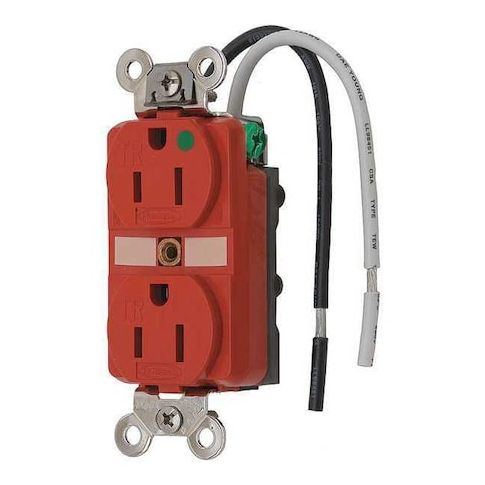

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL8200SGRA
Free Shipping
In Stock
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R RD is a heavy-duty, hospital-grade duplex receptacle ideal for commercial and institutional settings. Its tamper-resistant mechanism and integral wire leads ensure a secure and efficient installation process. Suitable for use in hospitals, offices, and public buildings, this receptacle provides a reliable and safe power outlet for a wide range of applications, including medical equipment, office machinery, and commercial appliances. Its four-point grounded design and impact-resistant thermoplastic housing make it a durable and long-lasting solution for demanding environments, meeting the highest standards for safety and performance.
Top product features:
- Extra heavy duty hospital grade specification
- Tamper-resistant style
- Four-point grounded design with one-piece nickel-plated brass ground strap
Top product applications:
- Commercial Office Buildings
- Institutional Settings such as Hospitals and Clinics
- High-Traffic Areas such as Hotels and Restaurants
The HUBBELL 15A Duplex Receptacle 125VAC 5-15R RD is an extra heavy duty, hospital grade duplex receptacle suitable for use in commercial and institutional settings. It features a tamper-resistant mechanism and integral wire leads.
Key Features of the HUBBELL 15A Duplex Receptacle:
- Amperage/Voltage: Rated for 15 A at 125 VAC
- NEMA Configuration: 5-15R, standard duplex outlet type
- Device Grade: Extra heavy duty hospital grade specification
- Tamper Resistant: Built-in tamper-resistant style
- Grounding System: Four-point grounded design with one-piece nickel-plated brass ground strap
- Wire Connection Type: Integral wire leads support fast installation
- accommodates #12–#10 AWG copper wire only
- Mounting Type: Flush mount with included mounting hardware
- Material & Construction: Impact resistant thermoplastic housing and face
- UL94V-0 flammability rating
- Operating Temperature Range: -40°F to +167°F (maximum continuous use at 75°C)
- Standards Compliance: CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL498 File E2186 listed
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 1.60
- Package Height: 4.10
- Package Weight: 0.29
