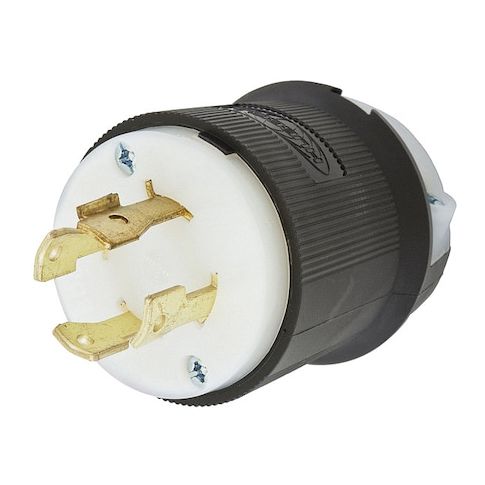

Locking Plug, L17-30P, 30 A, 600V AC, Three Phase, 3 Pole, Screw Terminals, Black, White MPN:HBL2741
Free Shipping
In Stock
The HUBBELL 30A Twist-Lock Plug (L17-30P) is a reliable and durable locking plug designed for use in industrial environments where a secure connection is specified. With a ribbed nylon housing and clear wire entry, it provides enhanced grip and protection from dust and contaminants. Rated for 30 A and 600V AC operation, it's suitable for a wide range of applications, including manufacturing, construction, and commercial settings. Its three-pole, four-wire grounded design and screw terminals accommodate #16 AWG to #8 AWG stranded copper wire, making it a versatile and convenient solution for electrical connections.
Top product features:
- Ribbed nylon housing for enhanced grip and resistance to impact and chemicals
- Integral dust shield protects the wiring chamber from dust and contaminants
- Accommodates #16 AWG to #8 AWG stranded copper wire via screw terminals
Top product applications:
- Industrial electrical panels
- Heavy-duty machinery
- Commercial construction sites
The HUBBELL 30A Twist-Lock Plug (L17-30P) is a locking plug rated for use in industrial environments where a locking connection is specified. It features a ribbed nylon housing for enhanced grip and resistance to impact and chemicals, with a clear, funnel-shaped wire entry that aids in straightforward termination. The integral dust shield helps protect the wiring chamber from dust and contaminants, while the cord grip design intended to reduce strain on terminations.
Key Features of the HUBBELL 30A Twist-Lock Plug L17-30P:
- Amperage/Voltage Rating: Rated for 30 A and 600V AC operation
- NEMA Configuration: L17-30P
- three-pole, four-wire grounded design
- Cable Range: Accepts cable diameters from 0.350" to 1.150"
- Wire Size Compatibility: Accommodates #16 AWG to #8 AWG stranded copper wire via screw terminals
- Housing Material: Nylon construction provides chemical and impact resistance
- Temperature Range: Operates between -40°C (without impact) up to +75°C continuous use
- Ingress Protection: IP20 rated
- suitable for indoor dry locations unless additional protection is provided
- Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed
- Flammability Rating: Meets HB or better per UL94/CSA standards
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.50
- Package Width: 2.40
- Package Height: 4.10
- Package Weight: 0.35
