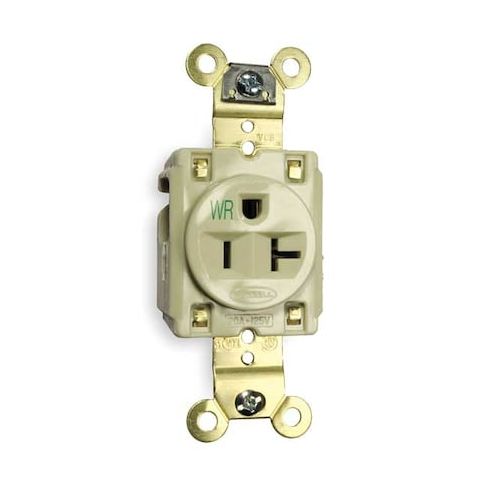

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:HBL5361IWR
Free Shipping
In Stock
The HUBBELL HBL5262 is a reliable and versatile single receptacle designed for industrial applications. Rated for 20A and 125V AC, it features a NEMA 5-20R configuration and is constructed with a durable nylon face and reinforced PET base. Suitable for use in a variety of settings, including commercial and industrial environments, this receptacle supports back and side wired screw terminals for flexible installation options. Its weather-resistant design and grounding capabilities make it an ideal choice for applications where reliability and safety are paramount, such as in manufacturing facilities, warehouses, and construction sites.
Top product features:
- The receptacle features a NEMA 5-20R configuration and is constructed with a nylon face and reinforced PET base.
- The device supports both back and side wired screw terminals for flexible installation options.
- The receptacle includes grounding capabilities with a stainless steel auto ground clip and grounding clip.
Top product applications:
- Industrial applications
- Commercial applications
- Construction sites
The HUBBELL HBL5262 is a single, flush mount receptacle rated for 20A and 125V AC, and is intended for industrial applications. It features a NEMA 5-20R configuration and is constructed with a nylon face and reinforced PET base. The device supports both back and side wired screw terminals for flexible installation options and includes grounding capabilities.
Key Features of the HUBBELL HBL5262 Receptacle:
- Amperage/Voltage: Rated for 20A, 125V AC
- NEMA Configuration: 5-20R, single outlet
- Mounting Type: Flush mount with included mounting hardware
- Wiring Method: Back or side wired screw terminals
- accommodates #12–#10 AWG copper wire
- Material Construction: Nylon face, reinforced PET base
- nickel-plated brass contacts
- Weather Resistant: Rated for use in specified environmental conditions as per manufacturer specifications
- Grounding: Includes stainless steel auto ground clip and grounding clip
- Certification & Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-601, NEMA WD-6 compliant
- Operating Temperature Range: -40°C to +75°C continuous operation without impact
- Dielectric Strength & Flammability Rating: Withstands minimum 2,000V
- UL94 V-0/V-2 flammability rating on components
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.70
- Package Height: 4.30
- Package Weight: 0.22
