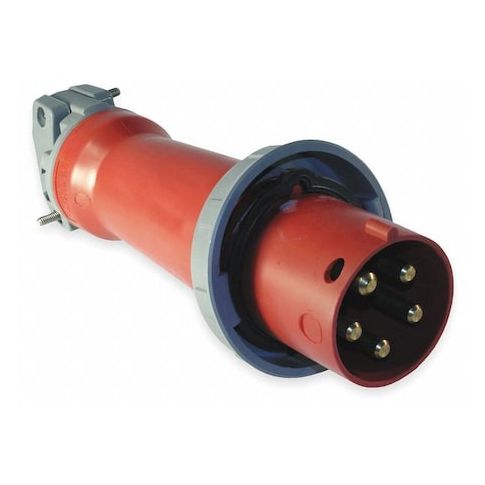

Watertight Pin & Sleeve Plug, 100 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, Red MPN:HBL5100P7W
Free Shipping
In Stock
The HUBBELL IEC Pin and Sleeve Plug is a heavy-duty, watertight electrical connector designed for demanding industrial environments. Rated for 100A and 277/480V AC, it features a durable Zytel 801 nylon housing and composite body, providing exceptional durability and resistance to harsh conditions. Ideal for use in applications such as manufacturing, construction, and oil and gas, this plug offers reliable wire accommodation, secure cord retention, and easy installation. Its IP67 ingress protection and operating temperature range of -40°C to +75°C make it suitable for use in a variety of environments, ensuring safe and reliable electrical connections.
Top product features:
- The HUBBELL IEC Pin and Sleeve Plug is rated for 100 amps at 277/480V AC.
- The plug features a Zytel 801 nylon housing with composite body.
- The plug has a watertight design with a gasketed sealing ring and IP67 ingress protection.
Top product applications:
- Industrial Control Panels
- Heavy-Duty Industrial Equipment
- High-Power Electrical Distribution Systems
The HUBBELL IEC Pin and Sleeve Plug is a watertight, heavy-duty electrical connector rated for 100A and 277/480V AC applications in industrial environments. It features a Zytel 801 nylon housing with composite body.
Key Features of the HUBBELL IEC Pin and Sleeve Plug:
- Current/Voltage Rating: Rated for 100 amps at 277/480V AC
- Construction: Non-metallic Zytel 801 nylon housing
- composite material provides durability
- Watertight Design: Gasketed sealing ring
- IP67 ingress protection
- Cord Retention: Heavy duty external cord grips
- Wire Accommodation: Accepts wire sizes from #3 AWG to #1/0 AWG
- supports cable diameters from 1.065 in to 1.94 in
- Operating Temperature Range: Operating temperature range: -40°C to +75°C continuous
- Grounding Style: IEC grounding configuration with shrouded contacts
- Standards Compliance: CSA Certified File LR280C, UL Classified to IEC Standards 60309-1, UL Listed (File E146033)
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.30
- Package Width: 5.50
- Package Height: 6.10
- Package Weight: 4.16
