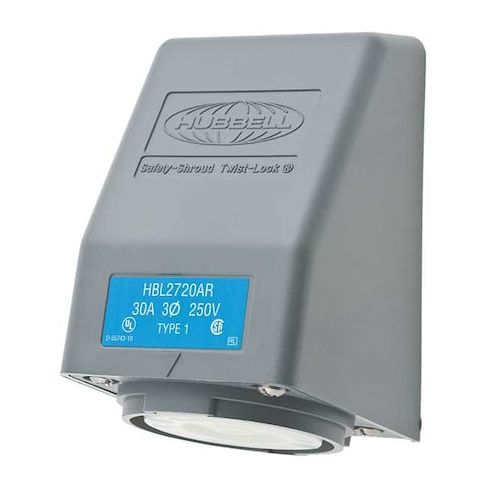

Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Gray MPN:HBL2720AR

• The HUBBELL 30A Angle Twist-Lock Receptacle L15-30R is a flanged locking receptacle rated for use in dry, indoor locations. It features a three-pole, four-wire configuration rated for 250V AC and 30 amps, with a twist-lock mechanism.





  Key Features of the HUBBELL 30A Angle Twist-Lock Receptacle L15-30R:





  • NEMA Configuration: L15-30R
  • three-phase, grounded


  • Contact Material: Brass contacts


  • Housing & Flange Material: Valox housing with specified resistance properties and gray Valox 357U rectangular flange


  • Mounting Type: Flush mount design suitable for single-gang installations


  • Wire Size Compatibility: Accepts #16 AWG to #8 AWG solid or stranded copper wire via screw terminals


  • Operating Temperature Range: -40°F to 167°F (maximum continuous temperature rise up to 75°C)


  • Special Feature: Includes cover
  • shrouded construction enhances protection during use


  • Standards Compliance: CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498 listed


  • Resistance Properties: Materials are corrosion resistant and impact resistant
