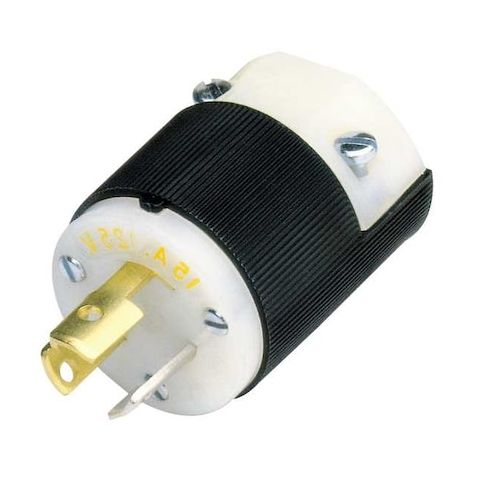

Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White MPN:HBL4720C

• The HUBBELL 15A Twist-Lock Plug L5-15P is a locking plug rated for use in demanding applications. It features a twist-lock mechanism with a 2-pole, 3-wire configuration and is rated for 125V AC at 15 amps. The plug includes an individually molded face for each blade configuration and a roomy wiring chamber to facilitate installation.





  Key Features of the HUBBELL - 15A Twist-Lock Plug L5-15P:





  • Amperage/Voltage Rating: Rated for 15 A, 125V AC single-phase operation


  • NEMA Configuration: L5-15P (locking type)


  • Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire
  • screw terminal connection


  • Cable Range: Suitable for cord diameters from 0.230 in to 0.720 in
  • compatible with listed portable cords


  • Housing Material: ribbed nylon housing


  • Operating Temperature Range: Maximum continuous temperature of 75°C, minimum -40°C (without impact)


  • Dielectric Strength & Flammability: Withstands minimum dielectric voltage of 2,000V
  • flammability rating HB or better per UL94/CSA standards


  • Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and UL Listed to UL498


  • Environmental Suitability: For indoor use in dry locations unless protected by additional means
  • IP20 suitability
