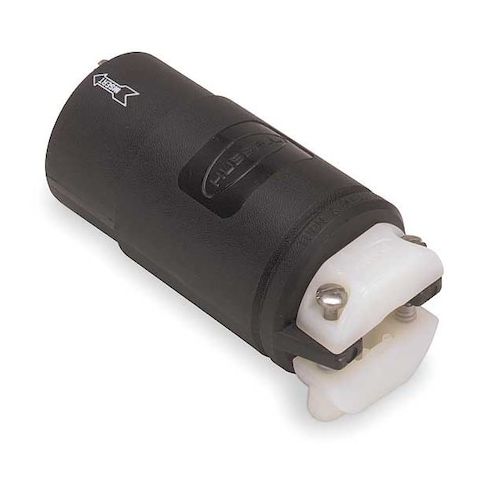

Locking Connector, 20 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black MPN:HBL23001HGB
Free Shipping
In Stock
The HUBBELL 20A Hospital Locking Plug is a reliable and safe solution for hospital-grade applications, including medical equipment, patient monitoring systems, and life-saving devices. Its 2-pole, 3-wire grounding configuration and 20A rating at 125V AC ensure secure and efficient power distribution. The plug's nylon housing and insulated body provide added protection against electrical shock, while the bronze contacts and mechanical cord grips ensure durability and strain relief. Ideal for use in indoor dry locations, this locking connector meets UL Listed and UL94 HB flammability ratings, making it a trusted choice for healthcare professionals and facilities.
Top product features:
- Accepts #14 AWG to #12 AWG wire sizes
- Mechanical cord grips provide strain relief
- Bronze contacts molded into the nose for damage resistance
Top product applications:
- Hospital-grade applications
- Indoor electrical installations
- Industrial equipment connections
The HUBBELL 20A Hospital Locking Plug is a locking connector intended for use in hospital-grade applications. It includes a nylon housing and insulated body
- rated for use in indoor dry locations. The plug supports 2-pole, 3-wire grounding configurations
- rated at 125V AC and 20A.
Key Features of the HUBBELL - 20A Hospital Locking Plug:
- Amperage/Voltage Rating: Rated for 20 A at 125V AC single phase
- Conductor Range: Accepts #14 AWG to #12 AWG wire sizes
- Cord Size Compatibility: Supports cords with diameters from 0.320 in to 0.660 in
- Housing Material: Nylon composite housing
- Contact Material: Bronze contacts molded into the nose for damage resistance
- Cable Retention: Mechanical cord grips provide strain relief
- Connection Type: Pressure terminal screws (screw terminals) for wiring connection
- Temperature Rating: Operates continuously from -40°C (w/o impact) up to +75°C
- NEMA Configuration: Non-NEMA
- straight connection orientation
- grounded design
- UL Listed and UL94 HB flammability rated
- IP20 ingress protection level
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.30
- Package Height: 4.10
- Package Weight: 0.20
