Watertight Pin & Sleeve Receptacle, 60 A, 600V AC/250V DC, Single Phase, 4 Pole, Style 1 Grounding MPN:HBL560RS1W
Free Shipping
In Stock

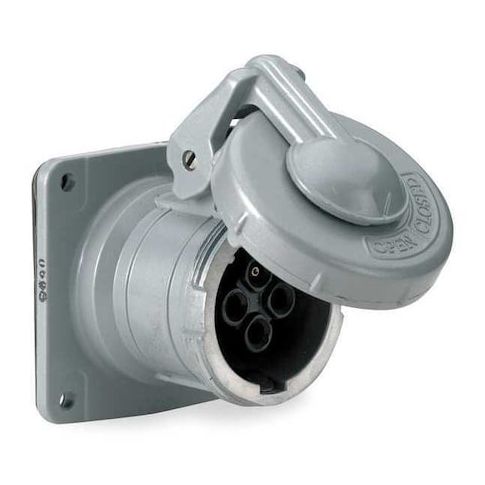

The HUBBELL Pin and Sleeve Watertight Receptacle is a rugged and reliable electrical device designed for industrial applications requiring connection and moisture resistance. Suitable for use in harsh environments, it features a durable Zytel 101 nylon housing and meets IP67/NEMA 4X requirements for moisture ingress protection. With a current rating of 60A and voltage rating of up to 600VAC/250VDC, it's ideal for applications such as outdoor equipment, wet locations, and areas with high humidity. Its watertight construction and pressure terminal screws ensure secure connectivity and long-lasting performance, making it a valuable addition to any industrial electrical system.
Top product features:
- The receptacle features a combination of metallic shrouding with a non-metallic Zytel 101 nylon housing to provide durability while maintaining resistance to environmental factors.
- The receptacle includes pressure terminal screws for connectivity and supports wire sizes from #8 AWG to #2 AWG.
- The receptacle meets IP67/NEMA 4X requirements for moisture ingress protection, ensuring watertight construction.
Top product applications:
- Industrial control panels
- Outdoor electrical equipment
- Marine electrical systems
The HUBBELL Pin and Sleeve Receptacle, 60A, 600VAC is a watertight electrical device intended for industrial applications requiring connection and rated moisture resistance. It features a combination of metallic shrouding with a non-metallic Zytel 101 nylon housing to provide durability while maintaining resistance to environmental factors. The receptacle includes pressure terminal screws for connectivity and supports wire sizes from #8 AWG to #2 AWG, rated for operation up to 60 amps at 600 volts AC.
Key Features of the HUBBELL Pin & Sleeve Watertight Receptacle:
- Current/Voltage Rating: Rated for 60A and up to 600VAC/250VDC
- Watertight Construction: Neoprene sealing glands and spring-loaded gasketed cover
- meets IP67/NEMA 4X requirements for moisture ingress protection
- Material Composition: Housing made from Zytel 101 nylon
- flange is epoxy painted aluminum
- bushing is aluminum
- retainer is thermoset polyester
- Cord Size Compatibility: Accepts wire sizes from #8 AWG to #2 AWG (6–4 AWG cord size)
- Connection Type: Pressure terminal screws with straight orientation
- Grounding Style: Style 1 grounding with shrouded design
- Flammability Ratings: UL94 V0, UL94 HB, CSA C22.2 No.0.17 compliant materials
- Operating Temperature Range: -40°C to +75°C continuous operation
- Industry Standards: CSA Certified (C22.2 No.182.1), UL Listed Type 4X (UL1682), complies with applicable impact and moisture resistance standards
- Pole/Wire Configuration: Single phase, four poles, five wires configuration
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.80
- Package Width: 5.40
- Package Height: 4.70
- Package Weight: 2.50
