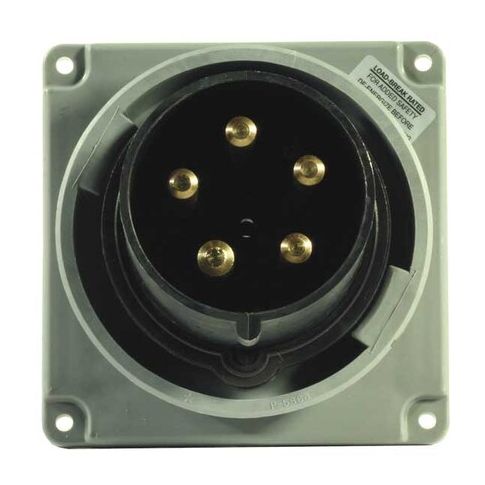

Watertight Pin & Sleeve Inlet, 100 A, 347/600V AC, Three Phase, 4 Pole, IEC Grounding, Black MPN:HBL5100B5W

• The HUBBELL IEC Pin and Sleeve Inlet is a electrical inlet rated for 100A and up to 600V AC, intended for use in industrial settings. Rated for 100A and up to 600V AC, this three-phase device features a flanged design with screw terminal wire connections, supporting wire sizes from #3 AWG to #1/0 AWG. The unit is constructed with impact-resistant Zytel 101 nylon housing and includes an insulated thermoplastic body

• see specifications for environmental ratings.




  Key Features of the HUBBELL IEC Pin and Sleeve Inlet:





  • Current/Voltage Rating: 100 A, 347/600V AC


  • Ingress Protection: Gasketed sealing ring
  • IP67 rating per IEC 60309-1 requirements


  • Material: Housing made from Zytel 101 nylon
  • flange also constructed of Zytel 101 nylon
  • retainer is high-impact thermoset


  • Wire Connection Type: Pressure terminal screws accommodate #3 AWG to #1/0 AWG conductors


  • Temperature Range: Operates between -40°C to +75°C (continuous)


  • Circuit Configuration: Three-phase (3Y), four poles, five wires
  • grounded per IEC standards


  • Ingress Protection & Resistance Properties: Per IEC 60309-1 requirements: impact resistance, moisture resistance, ingress protection (IP67)


  • Standards Compliance: CSA Certified File LR280C
  • UL Classified to IEC 60309-1/-2
  • UL Listed File E146032


  • Addition Features: Raised collar design around each phase pin as specified by manufacturer
  • shrouded design as specified by manufacturer
  • switch is rated according to manufacturer's specification for current interrupting at the stated amperage
