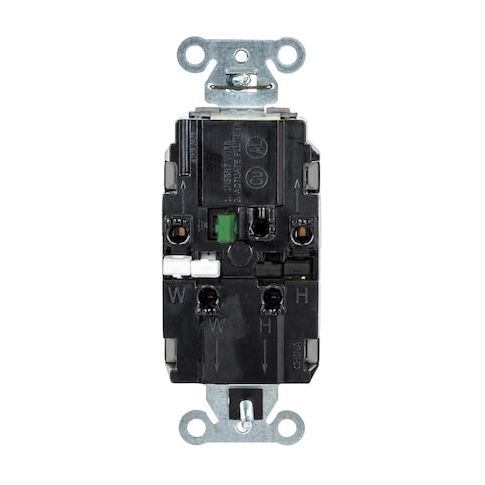

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Single, Gray MPN:DR20STGYTR
Free Shipping
In Stock
The HUBBELL EdgeConnect Receptacle is a versatile and reliable duplex outlet designed for use in dry, indoor locations. With its screwless, back-wired termination system, this decorator-style outlet offers easy installation and tamper-resistant properties. Rated for 20 A at 125V AC, it accommodates two devices and features visual indicator lights for power connection status. Suitable for various applications, including residential and commercial settings, this receptacle meets CSA and UL standards for safety and performance. Its surface mount design and standard single-gang box compatibility make it a convenient and efficient solution for electrical installations.
Top product features:
- Screwless, back-wired termination system with plunger mechanism for wire connection.
- Easy access split circuit tab enables flexible wiring options.
- Copper alloy contacts used for electrical connectivity, providing reliable and efficient electrical connections.
Top product applications:
- Residential Electrical Installation
- Commercial Electrical Installation
- Industrial Electrical Installation
The HUBBELL EdgeConnect™ Receptacle is a duplex straight blade receptacle rated for use in dry, indoor locations (NEMA Type 1, IP20). It features a screwless, back-wired termination system with plunger mechanism for wire connection. This decorator-style duplex outlet accommodates two devices and is rated for 20 A at 125V AC, with tamper-resistant properties and visual indicator lights showing power connection status.
Key Features of the HUBBELL EdgeConnect™ Receptacle:
- Termination System: Screwless push-in wire connection with spring termination method does not require additional hand tools for installation.
- Circuit Configuration: Easy access split circuit tab enables flexible wiring options.
- Contact Material: Copper alloy contacts used for electrical connectivity.
- NEMA Configuration: NEMA 5-20R configuration
- see specifications for application compatibility.
- Tamper Resistant: Tamper-resistant feature incorporated in design.
- Wire Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG using back wiring method.
- Housing Material & Rating: Thermoplastic housing
- NEMA Type 1 enclosure rated for dry, indoor locations (IP20).
- Mounting & Hardware: Surface mount design includes mounting hardware
- fits standard single-gang boxes (3.3 in center-to-center height).
- Standards Compliance: Meets CSA Certified 22.2 No 42 File 285, NEMA WD-6, UL 498 File No E2186 requirements
- UL94 V-2 flammability rating.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 19.40
- Package Width: 8.90
- Package Height: 9.00
- Package Weight: 22.60
