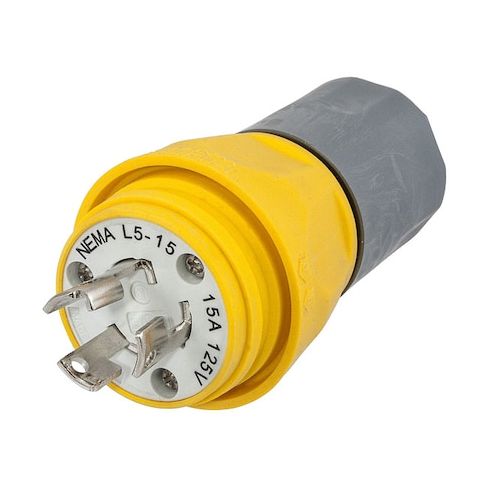

Watertight Locking Plug, L5-15P, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Yellow MPN:HBL24W47A
Free Shipping
In Stock
The HUBBELL 15A Watertight Locking Plug (L5-15P) is a rugged and reliable solution for industrial electrical connections in harsh environments. Designed for use in applications where watertight and weather-resistant characteristics are specified, this plug features a smooth thermoplastic elastomer body and nickel-plated brass blades and contacts. Rated for 125V AC operation at up to 15 amps, it provides secure connections in a variety of settings, including outdoor equipment, heavy machinery, and marine vessels. Its durable design and moisture-resistant materials ensure reliable performance in extreme temperatures, making it an ideal choice for industries where safety and efficiency are paramount.
Top product features:
- The plug features a smooth thermoplastic elastomer body designed to facilitate cleaning and minimize debris collection.
- The plug is rated for 125V AC operation at up to 15 amps, with nickel-plated brass blades and contacts.
- The plug has a polarized blade arrangement that supports alignment during installation.
Top product applications:
- Industrial Electrical Connections
- Heavy-Duty Machinery and Equipment
- Outdoor and Marine Electrical Systems
The HUBBELL 15A Watertight Locking Plug (L5-15P) is a two-pole, three-wire plug designed for industrial electrical connections intended for use in environments where watertight and weather-resistant characteristics are specified. It features a smooth thermoplastic elastomer body designed to facilitate cleaning and minimizes debris collection. The plug is rated for 125V AC operation at up to 15 amps, with nickel-plated brass blades and contacts.
Key Features of the HUBBELL 15A Watertight Locking Plug:
- NEMA Configuration: L5-15P locking design intended to maintain connection integrity in various settings.
- Ingress Protection: Rated IP69K for protection against high-pressure water and dust ingress.
- Material Construction: Thermoplastic elastomer housing with Valox components
- stainless steel hardware at connection points.
- Cord Accommodation: Accepts cable diameters from 0.375" to 0.625".
- Operating Temperature Range: -40°C to +60°C (continuous).
- Wire Compatibility: Compatible with wire sizes from 16/3 SJ to 10/3 SJ, and 18/3 S to 12/3 S types via screw terminals.
- Standards Compliance: Complies with the following standards: ANSI, NEMA WD-1, WD-6
- UL Listed Types: 4, 4X, 12, 6, and 6P.
- Special Features: Construction includes materials rated as moisture-, dust-, UV-, chemical-, impact-, and weather-resistant per manufacturer specifications
- polarized blade arrangement supports alignment during installation.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.00
- Package Height: 2.20
- Package Weight: 0.25
