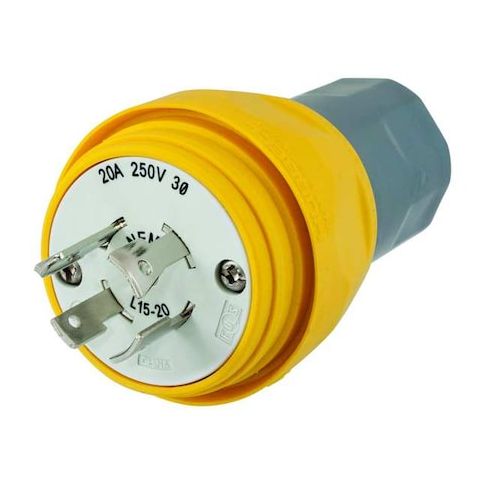

Watertight Locking Plug, L15-20P, 20 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Yellow MPN:HBL26W75
Free Shipping
In Stock
The HUBBELL 20A Watertight Locking Plug is a reliable and durable solution for industrial electrical connections. Designed for use in harsh environments, this three-phase plug provides a watertight and dust-resistant seal, ensuring safe and efficient connections. With a smooth thermoplastic elastomer body and stainless steel hardware, it withstands chemical and impact resistance. Suitable for various wire sizes and cable diameters, it's ideal for applications in manufacturing, construction, and outdoor equipment. Its IP69K rating and compliance with ANSI and NEMA standards make it a trustworthy choice for industries that require high-performance electrical connections.
Top product features:
- The plug features a smooth thermoplastic elastomer body to facilitate cleaning.
- The strain relief nut is positioned on the body as part of its sealing mechanism, providing additional watertight security.
- The plug is rated for three-phase, four-wire applications at 250V AC, making it suitable for a wide range of industrial electrical connections.
Top product applications:
- Industrial Electrical Connections
- Three-phase, four-wire applications at 250V AC
- Wiring for outdoor or harsh environments
The HUBBELL 20A Watertight Locking Plug (L15-20P YL) is a three-phase, four-wire plug intended for use in industrial electrical connections where watertight and dust-resistant characteristics are specified. Rated for 20 amps at 250V AC, this plug features a smooth thermoplastic elastomer body to facilitate cleaning. The strain relief nut is positioned on the body as part of its sealing mechanism, while stainless steel hardware includes stainless steel hardware provides additional durability.
Key Features of the HUBBELL 20A Watertight Locking Plug:
- NEMA Configuration: L15-20P
- rated for three-phase, four-wire applications at 250V AC
- Body Material: Thermoplastic elastomer with Valox components for chemical and impact resistance
- Contact/Blade Material: Nickel-plated brass contacts and blades enhance conductivity and corrosion resistance
- Cord Accommodation: Accepts cable diameters from 0.375 in to 0.875 in
- suitable for various wire sizes (min. cord: 16/3 SJ, max. cord: 10/5 S)
- Ingress Protection: IP69K rated
- moisture, dust, and weather resistant per UL Listed Types 4, 4X, 12, 6, and 6P
- Operating Temperature Range: -40°C to +60°C continuous use
- Wire Connection Type: Screw terminals with standard wiring style
- Standards Compliance: Meets ANSI standards as well as NEMA WD-1 and WD-6 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.00
- Package Width: 6.00
- Package Height: 2.90
- Package Weight: 0.55
