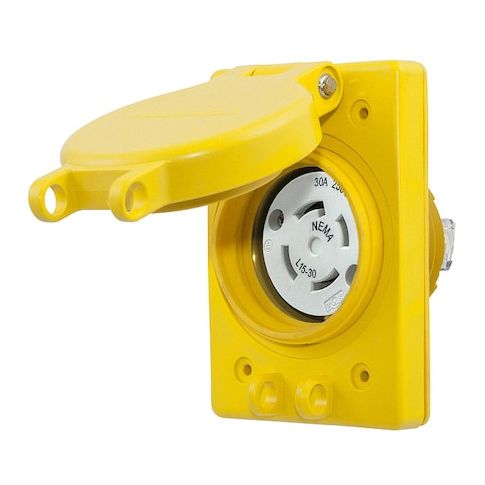

Watertight Flanged Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount MPN:HBL69W75
Free Shipping
In Stock
The HUBBELL 30A Watertight Locking Receptacle is a rugged and reliable electrical device designed for industrial applications where watertight and impact-resistant connections are crucial. Ideal for use in harsh environments, this receptacle features a flip-up cover and is constructed with thermoplastic elastomer housing and nickel-plated brass contacts to withstand demanding conditions. With three-phase power at 250V AC and a wide range of NEMA enclosure ratings, this receptacle is suitable for applications such as outdoor equipment, heavy machinery, and industrial control panels, providing a durable and long-lasting solution for industries that require high-performance electrical connections.
Top product features:
- Watertight and impact-resistant connections are provided by the thermoplastic elastomer housing and nickel-plated brass contacts.
- The receptacle supports three-phase power at 250V AC.
- The flip-up cover provides a secure and accessible way to interact with the receptacle.
Top product applications:
- Industrial Settings
- This receptacle is suitable for use in industrial settings, such as manufacturing facilities, warehouses, and construction sites, where it can provide a reliable and durable connection for three-phase power.
- Marine Environments
The HUBBELL 30A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for industrial applications requiring watertight and impact-resistant connections. This receptacle features a flip-up cover and is constructed with thermoplastic elastomer housing and nickel-plated brass contacts to provide durability in demanding environments. It supports three-phase power at 250V AC, accommodates wire sizes from #18 AWG to #8 AWG, and meets multiple NEMA enclosure ratings for protection against moisture, dust, and corrosion.
Key Features of the HUBBELL 30A Watertight Locking Receptacle:
- Amperage/Voltage: Rated for 30 A at 250V AC with three poles and four wires (NEMA L15-30R configuration).
- IP69K rated
- provides ingress protection as specified by the rating
- Material Construction: Thermoplastic elastomer housing with nylon components
- nickel-plated brass contacts
- Cord Accommodation: Accepts wire sizes from #18 AWG to #8 AWG via screw terminals.
- NEMA Enclosure Ratings: Meets NEMA types 3R, 3RX, 4, 4X, 6, 6P, and 12 standards
- Mounting Style: Flush mount design with rectangular flange
- includes flip-up cover
- Operating Temperature Range: -40°F to +140°F (-40°C to +60°C continuous operation).
- Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 requirements.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.20
- Package Width: 3.40
- Package Height: 3.40
- Package Weight: 0.65
