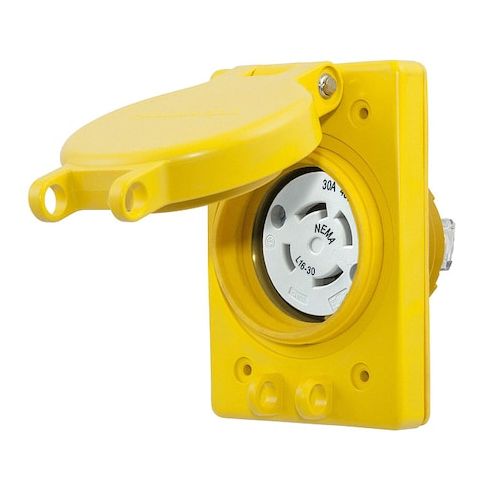

Watertight Flanged Locking Receptacle, L16-30R, 30 A, 480V AC, Three Phase, 3 Pole, Flush Mount MPN:HBL69W76
Free Shipping
In Stock
The HUBBELL 30A Watertight Locking Receptacle is a reliable and durable electrical solution for harsh environments. Designed for flush-mount installation, this three-phase receptacle withstands water and impact, ensuring secure connections in areas where safety and reliability are paramount. Rated for 30 amps and 480V AC, it's ideal for use in industrial settings, outdoor applications, and areas with high humidity or exposure to the elements. With its corrosion-resistant construction and NEMA L16-30R configuration, this receptacle provides a secure and efficient connection point for your electrical needs, making it a valuable asset for industries such as construction, manufacturing, and oil and gas.
Top product features:
- Watertight and impact-resistant connections for environments requiring high durability and protection from water and physical stress.
- Accepts #18 AWG to #8 AWG wire sizes via screw terminals for easy and flexible wiring options.
- Flush mount with rectangular flange design for a sleek and space-saving installation.
Top product applications:
- Marine Electronics
- Industrial Equipment
- Commercial Construction
The HUBBELL 30A Watertight Locking Receptacle is a flanged, flush-mount electrical device intended for installation in environments requiring watertight and impact-resistant connections. Rated for 30 amps and 480V AC, this three-pole, four-wire receptacle includes a locking configuration (NEMA L16-30R).
Key Features of the HUBBELL 30A Watertight Locking Receptacle:
- Amperage/Voltage: Rated for 30 A at 480V AC, three-phase
- NEMA Configuration: L16-30R with polarized design
- Enclosure Ratings: Meets the following enclosure ratings: NEMA Types 4, 4X, 6, 6P, and 12
- IP69K
- Material Construction: PBT body with thermoplastic elastomer housing and insulation
- stainless steel hardware
- Corrosion Resistance: Includes metallic components with corrosion resistance
- Wire Accommodation: Accepts #18 AWG to #8 AWG wire sizes via screw terminals
- Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)
- Mount Type & Flange Shape: Flush mount with rectangular flange
- Standards Compliance: Conforms to ANSI standards as well as NEMA WD-1 and WD-6 requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.30
- Package Width: 3.40
- Package Height: 3.50
- Package Weight: 0.65
