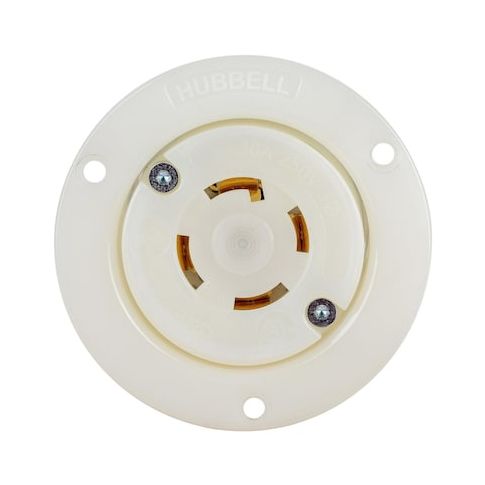

Locking Receptacle, L15-30R, 30 A, 250V AC, Three Phase, 3 Pole, Flush Mount, White MPN:HBL2726ST
Free Shipping
In Stock
The HUBBELL Locking Receptacle is a reliable and efficient solution for industrial settings, ideal for indoor use in applications such as manufacturing, warehousing, and commercial facilities. Its EdgeConnect screwless termination system simplifies wire insertion and securing, while backwired terminations with funnel-shaped entries facilitate easy installation. Rated for 30 A, 250V AC, this three-phase receptacle supports up to 3 hp and features a polarized design with brass contacts and an impact-resistant nylon housing. Suitable for single-gang installations, it meets applicable standards and is designed for dry locations only.
Top product features:
- The HUBBELL Locking Receptacle features a screwless termination system allowing wire insertion and securing via plunger mechanism.
- The device supports backwired terminations with funnel-shaped entries for facilitates installation and accommodates wire sizes from 8 AWG to 16 AWG.
- The receptacle has a polarized design and includes mounting hardware for single-gang installations.
Top product applications:
- Industrial Settings
- Office Spaces
- Data Centers
The HUBBELL Locking Receptacle is a straight, three-phase electrical receptacle suitable for indoor use in industrial settings. It features the EdgeConnect™ screwless termination system, allowing wire insertion and securing via plunger mechanism
- does not require additional tools for this process. The device supports backwired terminations with funnel-shaped entries for facilitates installation and accommodates wire sizes from 8 AWG to 16 AWG.
Key Features of the HUBBELL Locking Receptacle:
- NEMA Configuration: L15-30R
- rated for 30 A, 250V AC
- Number of Poles/Wires: 3 poles, 4 wires
- grounded
- Connection Orientation: Straight
- polarized design
- Contact Material: Brass contacts within an impact-resistant nylon housing
- Operating Temperature Range: -40°F to 167°F (dry location only)
- Horsepower Rating: Rated up to 3 hp
- Includes Mounting Hardware for single-gang installations
- Certain driver types accepted: Slotted, Phillips, Robertson head drivers compatible with mounting hardware
- Screwless spring termination is intended to maintain conductor positioning during wiring
- Covers applicable standards including CSA C22.2, Federal Specification W-C-596, UL 498
- UL94 V-2 flammability rating
- NEMA Enclosure Type 1/IP20 shrouded construction suitable for indoor use only
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.20
- Package Width: 3.20
- Package Height: 3.30
- Package Weight: 0.37
