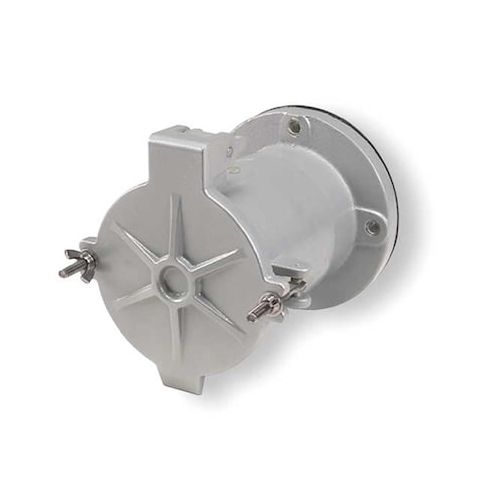

Pin & Sleeve Receptacle, 200 A, 600V AC/250V DC, Single Phase, 2 Pole, Style 2 Grounding, Gray MPN:VR20322-S39
Free Shipping
In Stock
The Hubbell Pin & Sleeve Receptacle is a heavy-duty electrical connector designed for indoor and outdoor use in industrial settings. Its corrosion-resistant copper-free aluminum construction and baked powder epoxy/polyester finish ensure reliable performance in harsh environments. With a high current rating of 200A and voltage rating of 600V AC/250V DC, this receptacle is suitable for applications requiring high power transmission. Its Type 4X NEMA enclosure rating provides protection against water ingress and corrosion, making it ideal for use in wet or corrosive environments. Suitable for a variety of industries, including manufacturing and construction.
Top product features:
- Copper-free aluminum housing with electrostatically applied epoxy powder finish provides corrosion resistance.
- Brass contacts with a slotted spring clip design support electrical connectivity within specified parameters.
- Spring clamp terminals utilize gripper ribs in box terminals to securely grip conductors.
Top product applications:
- Industrial Electrical Panels
- Heavy-Duty Machinery Installation
- Outdoor Lighting Systems
The HUBBELL Pin & Sleeve Receptacle is a 200A, 3-pole, 2-wire industrial-grade electrical connector rated for indoor and outdoor use per manufacturer specifications. Constructed from copper-free aluminum with a baked powder epoxy/polyester finish, it includes a finish that offers corrosion resistance per product specifications. This receptacle features straight connection orientation and utilizes brass contacts with a slotted spring clip design as specified by the manufacturer to support electrical connectivity within specified parameters.
Key Features of the HUBBELL Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 200 A and up to 600V AC/250V DC operation.
- Material Construction: Copper-free aluminum housing with electrostatically applied epoxy powder finish provides corrosion resistance.
- NEMA Enclosure Rating: Type 4X rating when used with VersaMate receptacle and locking ring tightened
- see product documentation for specific environmental ratings.
- Connection Orientation: Straight configuration to facilitate plug-in alignment.
- Contact Material: Brass contacts with a slotted spring clip design as specified by the manufacturer support electrical connectivity within specified parameters.
- Grounding Style: Includes green grounding screw
- grounded per Style 2 specifications.
- Wire Connection Type: Spring clamp terminals utilize gripper ribs in box terminals to securely grip conductors as described by the supplier.
- Reverse Service Capability: Rated for reverse service applications according to manufacturer’s guidelines.
- Casing Dimensions (L x W x H): Measures 7.87 in x 6.83 in x 7.59 in overall size
- single gang configuration.
- NEMA Enclosure Rating: Suitable for both indoor and outdoor installations requiring protection against water ingress and corrosion (Type 4X).
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.62
- Package Width: 9.25
- Package Height: 7.50
- Package Weight: 7.00
