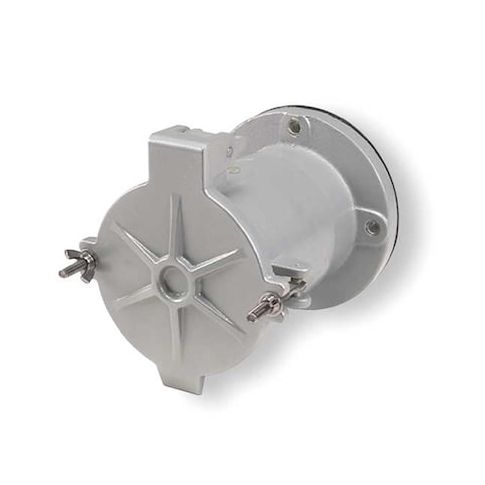

Pin & Sleeve Receptacle, 200 A, 600V AC/250V DC, Three Phase, 3 Pole, Style 2 Grounding, Gray MPN:VR20422-S39

• The HUBBELL Pin & Sleeve Receptacle is a 200A, 4-pole, 3-wire electrical connector designed for use in industrial environments where power connections are needed. Constructed from copper-free aluminum with a baked powder epoxy/polyester finish, this receptacle is intended for indoor and outdoor applications

• see product specifications for environmental ratings. It features a Breech-Lock cap design with flip lid and screw cover functionality, along with spring clamp terminals for conductor connection.




  Key Features of the HUBBELL Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 200 A and up to 600V AC/250V DC operation


  • Material: Copper-free aluminum housing with electrostatically applied epoxy powder finish


  • NEMA Enclosure Rating: Type 4X when mated with VersaMate receptacle and locking ring tightened


  • Contact Material: Brass contacts with slotted spring clip design


  • Connection Orientation: Straight
  • wire connection type uses spring clamp terminals


  • Grounding Style: Style 2 grounded configuration
  • includes green grounding screw in box


  • Polarized/shrouded design intended to assist with correct mating


  • Reverse Service Capability: Yes (reverse service)


  • Circuit Configuration: Three-phase
  • four wires
  • three poles


  • Frequency Range: Suitable for systems operating at 50-400 Hz frequency range


  • Standards Compliance: UL Listed product series (VersaMate)
