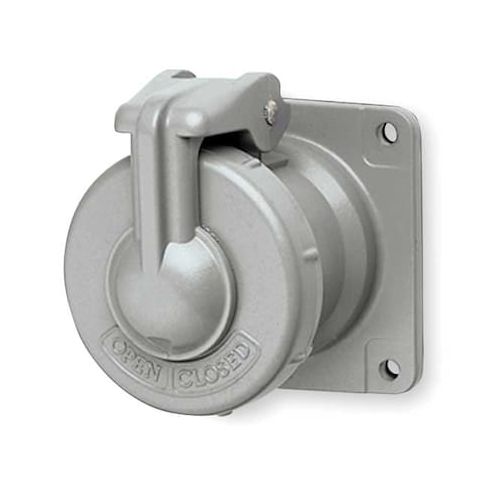

Pin & Sleeve Receptacle, 30 A, 600V AC/250V DC, Single Phase, 3 Pole, Style 2 Grounding, Gray MPN:VR332

• The HUBBELL Pin & Sleeve Receptacle, 30A, 3P, 2W, NEMA 4X is an electrical receptacle rated for indoor and outdoor use within specified parameters. Constructed from copper-free aluminum with a baked powder epoxy/polyester finish, this receptacle includes a “Breech-Lock” cap, which can be used as either a flip lid or screw cover. It is rated for up to 600V AC/250V DC and uses spring clamp terminals and brass contacts to facilitate wire connection. The unit is rated NEMA 4X when installed with compatible VersaMate series plug and locking ring properly secured.





  Key Features of the HUBBELL Pin & Sleeve Receptacle:





  • Current/Voltage Rating: Rated for 30 A at up to 600V AC/250V DC


  • NEMA Enclosure Rating: Type 4X protection against water and corrosion when properly installed


  • Material Construction: Copper-free aluminum housing with electrostatically applied epoxy/powder finish for durability


  • Contact Material: Brass contacts are used for electrical connection


  • Connection Orientation: Straight configuration
  • uses spring clamp terminals for wire connection


  • Grounding Style: Grounded (Style II) with included green grounding screw


  • Circuit Configuration: Three poles, two wires
  • polarized design assists with mating alignment


  • Cap Design: Flip-up “Breech-Lock” cap can remain open during plug insertion or maintenance tasks


  • Suits Industrial Locations: Suitable for indoor or outdoor installation in accordance with product ratings


  • Standards Compliance: CSA Certified LR111846
  • UL E10757 listed
