Pin & Slve Plug, 60A, 3P, 3W, 600VAC/250VDC MPN:VP6375
Free Shipping
In Stock

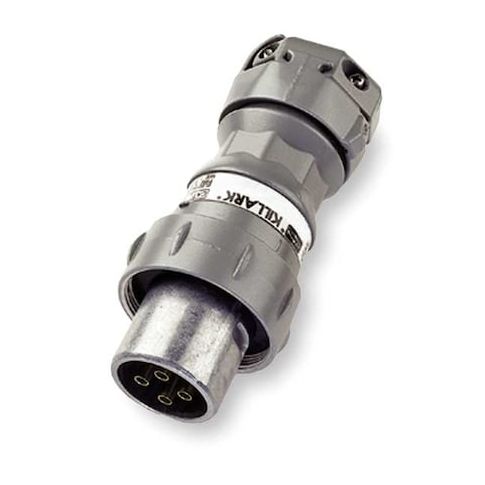

The Hubbell Pin & Sleeve Plug is a rugged and reliable electrical connector designed for industrial applications. With its octagonal body and copper-free aluminum housing, it provides a secure grip and durable performance in harsh environments. Rated for 60A at 600V AC/250V DC, it is suitable for a wide range of applications, including hazardous locations and outdoor use. The plug is compatible with indoor and outdoor environments, and its Type 4X enclosure rating ensures protection from dust, water, and corrosion. Ideal for use in manufacturing, construction, and other industrial settings, this plug provides reliable connections and enhanced safety.
Top product features:
- The plug has an octagonal body style to assist with grip during connection and disconnection.
- The unit is rated for operation at 600V AC or 250V DC applications.
- The plug features a Style I grounded design with shrouded construction to enhance protection during use.
Top product applications:
- Industrial electrical applications
- Marine electrical installations
- Hazardous location applications
The HUBBELL Pin & Sleeve Plug, 60A, 3P, 3W is an electrical connector intended for industrial applications. This plug features an octagonal body style to assist with grip during connection and disconnection. It is rated for operation at 600V AC or 250V DC applications. The unit is compatible with indoor or outdoor environments when used with a VersaMate receptacle and locking ring secured.
Key Features of the HUBBELL Pin & Sleeve Plug:
- Amperage/Voltage: Rated for 60 A at 600V AC/250V DC
- Poles/Wires: Three poles and three wires (3P, 3W)
- NEMA Enclosure Rating: Type 4X when used with compatible VersaMate receptacle
- Hazardous Location Specification: Class I, Divisions 1 & 2
- Groups A-D
- Material: Copper-free aluminum housing with baked powder epoxy/polyester finish
- Screw Terminals: Box terminals accommodate conductors
- Cable Compatibility: Suitable for Type P marine cable
- grommet range of 0.65–1.50 inches
- Frequency Range: Accepts frequencies from 50 Hz to 400 Hz
- Grounding Style: Style I grounded design
- shrouded construction enhances protection during use
- Certifications: CSA Certified LR111846 and UL E10757 listed standards compliance
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.90
- Package Width: 4.40
- Package Height: 4.30
- Package Weight: 3.06
