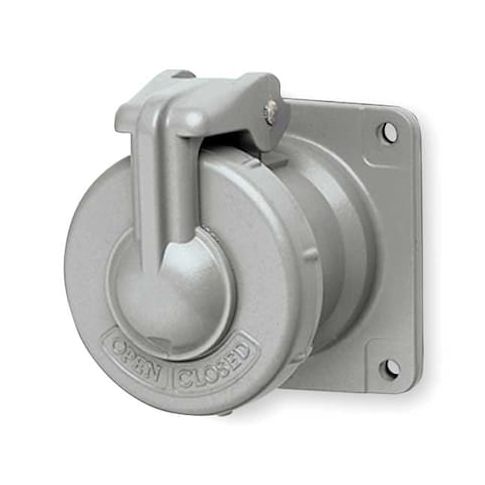

Pin & Sleeve Receptacle, 60 A, 600V AC/250V DC, Single Phase, 2 Pole, Style 2 Grounding, Gray MPN:VR632
Free Shipping
In Stock
The Hubbell Pin & Sleeve Receptacle is a reliable and durable electrical solution for various environments. Suitable for both indoor and outdoor use, this receptacle is constructed from copper-free aluminum with a baked powder epoxy/polyester finish, ensuring protection against water and corrosion when properly installed. Rated for 60A at up to 600V AC/250V DC, it provides safe operation in industrial settings. Ideal for applications such as construction sites, manufacturing facilities, and harsh weather conditions, this receptacle offers a NEMA 4X enclosure rating and CSA certification for added assurance. Its compact design and ease of installation make it a convenient choice for a wide range of applications.
Top product features:
- Rated for 60 A at up to 600V AC/250V DC
- Polarized/shrouded design supports correct alignment during installation
- Style 2 grounded construction supports safe operation in industrial settings
Top product applications:
- Industrial Settings
- Outdoor Environments
- High-Water Hazard Areas
The HUBBELL Pin & Sleeve Receptacle, 60A, 3P, 2W, NEMA 4X is an electrical receptacle rated for use in specified environments. Constructed from copper-free aluminum with a baked powder epoxy/polyester finish, this pin and sleeve receptacle is suitable for both indoor and outdoor use
- NEMA 4X enclosure provides protection against water and corrosion when properly installed. It features a Breech-Lock cap mechanism (for use with compatible components), spring clamp terminals for secure conductor clamping, and a shrouded design to enhance connection integrity.
Key Features of the HUBBELL Pin & Sleeve Receptacle:
- Current/Voltage Rating: Rated for 60 A at up to 600V AC/250V DC
- frequency range of 50-400 Hz
- NEMA Enclosure Rating: Type 4X rated when properly installed with VersaMate locking ring
- Material Construction: Copper-free aluminum housing with corrosion-resistant baked powder epoxy/polyester coating
- Contact Material: Brass contacts
- Wire Connection Type: Spring clamp terminals
- Polarized/shrouded design supports correct alignment during installation
- Style II configuration
- Grounding Style: Style 2 grounded construction supports safe operation in industrial settings
- Dimensions: Measures approximately 4.5 in x 4.25 in x 4.66 in (L x W x H)
- Standards Compliance: CSA Certified LR111846
- UL E10757 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.70
- Package Width: 5.30
- Package Height: 4.80
- Package Weight: 2.30
