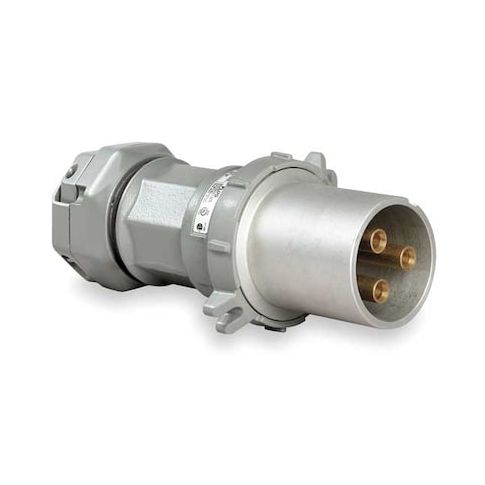

Pin & Slve Plug, 200A, 4P, 3W, 600VAC/250VDC MPN:VP204612-S39
Free Shipping
In Stock
The Hubbell Pin & Sleeve Plug is a reliable and versatile industrial connector designed for use in demanding applications. Rated for 200A at 600V AC or 250V DC, this plug is suitable for a wide range of industries, including marine, oil and gas, and manufacturing. Its octagonal body style and box terminals with gripper ribs ensure secure connections, while its copper-free aluminum housing and baked powder epoxy/polyester finish provide durability and resistance to corrosion. Ideal for use in hazardous locations, this plug is certified for Class I, Divisions 1 & 2, Groups A-D locations, making it a trusted choice for critical applications.
Top product features:
- Rated for 200 A at 600V AC / 250V DC
- Features an octagonal body style
- Has box terminals with gripper ribs that clamp conductors
Top product applications:
- Industrial electrical connections in hazardous locations
- Marine electrical connections for boats and ships
- Heavy-duty electrical connections in industrial settings
The HUBBELL Pin & Sleeve Plug is a 200A, 4-pole, 3-wire industrial connector rated for operation at up to 600V AC or 250V DC. Constructed from copper-free aluminum with a baked powder epoxy/polyester finish, this plug features an octagonal body style.
Key Features of the HUBBELL Pin & Sleeve Plug:
- Amperage/Voltage: Rated for 200 A at 600V AC / 250V DC
- Pole/Wire Configuration: 4 poles, 3 wires
- Body Style: Octagonal design facilitates handling during connection/disconnection
- Terminals: Box terminals with gripper ribs clamp conductors
- funneled entry chambers assist in conductor placement
- NEMA Enclosure Rating: Type 4X when mated with VersaMate receptacle and locking ring tightened
- Material/Finish: Copper-free aluminum housing with electrostatically applied epoxy powder coating
- Cable Compatibility: Suitable for Type P marine cable
- grommet range of 1.0-2.5 inches
- wire size range of minimum/maximum 1 AWG
- Hazardous Location Specification: Classified for Class I, Divisions 1 & 2, Groups A-D locations
- Grounding Style: Style II grounded configuration (shrouded)
- Straight Connection Orientation
- screw terminal wire connections
- Standards Compliance: CSA Certified LR111846 and UL E10757 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 30 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 8.40
- Package Height: 6.40
- Package Weight: 12.27
