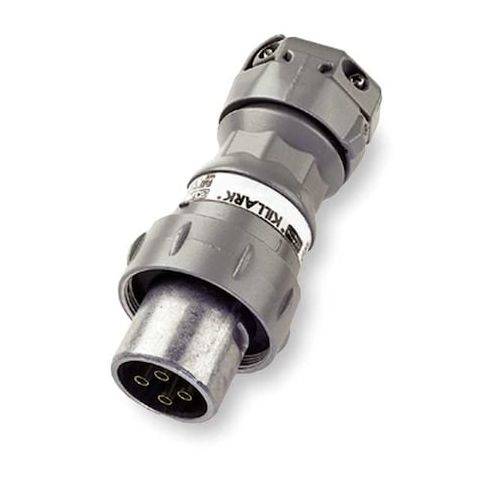

Pin & Slve Plug, 30A, 4P, 4W, 600VAC/250VDC MPN:VP3475
Free Shipping
In Stock
The HUBBELL Pin & Sleeve Plug is a robust electrical connector designed for industrial environments. Rated for up to 30 amps, it supports both 600V AC and 250V DC applications with four poles and four wires. Its octagonal body style provides a secure grip during connection and disconnection, making it ideal for use in wet, cold, hazardous, corrosive, or marine locations. Suitable for Class I, Divisions 1 & 2, and Groups A-D, this plug is perfect for applications in food processing, oil and gas, and other industries where reliability and safety are paramount.
Top product features:
- Rated for 30 A at 600V AC / 250V DC
- Features an octagonal body style for a secure grip during connection and disconnection
- Accepts wire sizes from #10 AWG to #6 AWG
Top product applications:
- Industrial control panels
- Marine applications
- Hazardous location installations
The HUBBELL Pin & Sleeve Plug, 30A, 4P, 4W is an electrical connector rated for industrial environments. This plug features an octagonal body style for a secure grip during connection and disconnection. It is rated for up to 30 amps and supports both 600V AC and 250V DC applications with four poles and four wires. The unit is constructed from copper-free aluminum with a baked powder epoxy/polyester finish, with a finish intended for use in wet, cold, hazardous, corrosive, or marine locations.
Key Features of the HUBBELL Pin & Sleeve Plug:
- Amperage/Voltage: Rated for 30 A at 600V AC / 250V DC
- Poles/Wires: Four poles and four wires (grounded)
- NEMA Enclosure Rating: Type 4X when used with VersaMate receptacle and locking ring tightened
- Hazardous Location Specification: Suitable for Class I, Divisions 1 & 2
- Groups A-D
- Body Design: Octagonal shape facilitates grip during handling
- Cable Compatibility: Accepts wire sizes from #10 AWG to #6 AWG
- suitable for Type P marine cable
- Wire Connection Type: Screw terminals with gripper ribs designed to clamp conductors
- Material/Finish: Copper-free aluminum housing with electrostatically applied epoxy powder coating
- Straight Connection Orientation
- shrouded design (Style I)
- Chemical Resistance/Frequency Range: Rated for use in corrosive areas
- frequency rating of 50-400 Hz
- Standards Compliance: CSA Certified LR111846
- UL E10757 listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.80
- Package Width: 3.50
- Package Height: 3.40
- Package Weight: 1.80
