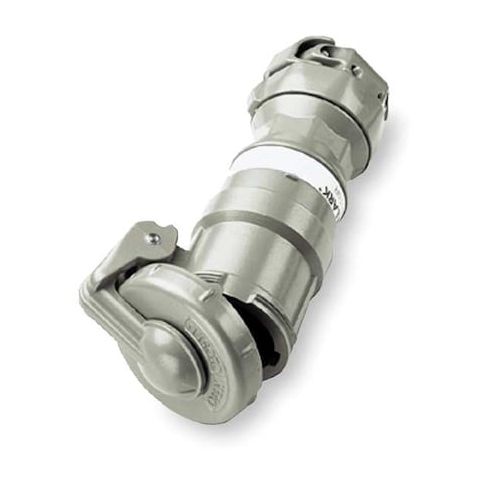

Pin & Sleeve Connector, 30 A, 600V AC, Three Phase, 4 Pole, Style 2 Grounding, Gray, NEMA 4X MPN:VPR3465
Free Shipping
In Stock
The HUBBELL Pin & Sleeve Connector is a reliable and versatile device designed for use in a wide range of applications, including hazardous locations, marine environments, and outdoor installations. With a 30A, 4-pole, 3-wire configuration and a rating of up to 600V AC/250V DC, this connector is suitable for use with the VersaMate series and Type P marine cable applications. Its corrosion-resistant copper-free aluminum housing and brass contacts ensure safe and secure connections, while its shrouded design and straight connection orientation provide added protection and ease of use. Perfect for applications requiring high reliability and safety.
Top product features:
- The Pin & Sleeve Connector features an octagonal body style for grip.
- The housing is constructed from copper-free aluminum with a baked powder epoxy/polyester finish for corrosion resistance.
- The connector accepts cable diameters from 0.55 in to 1.20 in (6 AWG max., 10 AWG min.)
Top product applications:
- Use with the VersaMate series
- Type P marine cable applications
- Hazardous locations such as Class I Divisions 1 & 2 Groups B,C,D, Class II Divisions 1 &2 Groups F,G, Class III Divisions 1 &2
The HUBBELL Pin & Sleeve Connector is a 30A, 4-pole, 3-wire device rated for up to 600V AC/250V DC. For use with the VersaMate® series, this connector features an octagonal body style for grip and is rated for indoor and outdoor environments as specified
- see ratings below, including wet, corrosive, hazardous locations. The housing is constructed from copper-free aluminum with a baked powder epoxy/polyester finish for corrosion resistance.
Key Features of the HUBBELL Pin & Sleeve Connector:
- Current/Voltage Rating: 30 A
- 600V AC / 250V DC
- Pole/Wire Configuration: 4 poles, 3 wires
- grounded (Style II)
- Housing Material: Copper-free aluminum with epoxy/polyester coating
- NEMA Enclosure Rating: Type 4X when mated with VersaMate receptacle and locking ring tightened
- Hazardous Location Specification: Rated Class I Divisions 1 & 2 Groups B,C,D
- Class II Divisions 1 &2 Groups F,G
- Class III Divisions 1 &2
- Screw Terminals: Box terminals with gripper ribs designed to clamp conductors
- Cable Accommodation: Accepts cable diameters from 0.55 in to 1.20 in (6 AWG max.,10 AWG min.)
- Contact Material: Brass contacts used for electrical connection
- Shrouded Design and Straight Connection Orientation
- Compatible Series: For use with VersaMate® products
- suitable for Type P marine cable applications
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.80
- Package Width: 4.10
- Package Height: 3.40
- Package Weight: 2.15
