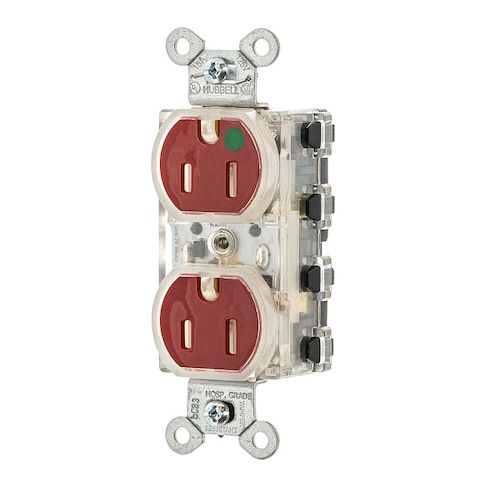

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP8200RLTR
This Hospital Grade SNAPConnect Receptacle is designed for industrial and hospital environments, featuring modular wiring for easy installation and tamper-resistant design to reduce foreign object insertion risks. The duplex straight blade receptacle includes an LED indicator to show power connection status, making it a convenient and safe choice. Suitable for areas requiring hospital-grade performance, this receptacle meets CSA and UL requirements and is rated for 15 A at 125V AC. Its flush mount design and grounded design with brass contacts make it an ideal solution for healthcare facilities, laboratories, and other industrial settings where reliability and safety are paramount.
Top product features:
- Modular wiring with straight orientation for facilitates installation
- Tamper-resistant feature helps reduce risk of foreign object insertion
- Face-mounted LED indicator shows power connection status
Top product applications:
- Industrial environments
- Hospital environments
- Commercial settings
The HUBBELL Hospital grade SNAPConnect Receptacle is a duplex straight blade receptacle suitable for use in industrial and hospital environments. This snapconnect receptacle features modular wiring, allowing the connector to be installed during rough-in with snap-in placement after wall installation, streamlining the process of device change-out. It includes tamper-resistant design and an LED indicator on the face to indicate power connection status.
Key Features of the HUBBELL Hospital grade SNAPConnect Receptacle:
- Connection Type: Modular wiring with straight orientation for facilitates installation
- Current Rating: Rated for 15 A at 125V AC
- rated for current interrupting at specified current levels (15 A)
- NEMA Configuration: 5-15R duplex outlet with two outlets per device
- Tamper Resistant: Tamper-resistant feature helps reduce risk of foreign object insertion.
- Visual Indicator Lights: Face-mounted LED indicates power connection status
- Operating Temperature Range: -40°F minimum to 167°F maximum (continuous up to 75°C)
- Hospital Grade: Suitable for hospital environments meeting applicable performance standards.
- Grounding & Contacts: Grounded design with brass contacts and ground terminals
- Mount Type & Hardware: Flush mount
- includes mounting screws made from zinc plated steel and galvanized steel strap
- Casing Materials: Nylon face, polycarbonate housing, PBT base, stainless steel self-grounding staple
- Standards Compliance: Meets CSA and UL requirements
- UL 94V-2 flammability rating
- dielectric voltage withstands minimum of 2,000V
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 1.90
- Package Height: 1.50
- Package Weight: 0.11
