USB Receptacles SNAP8300UACGY MPN:SNAP8300UACGY

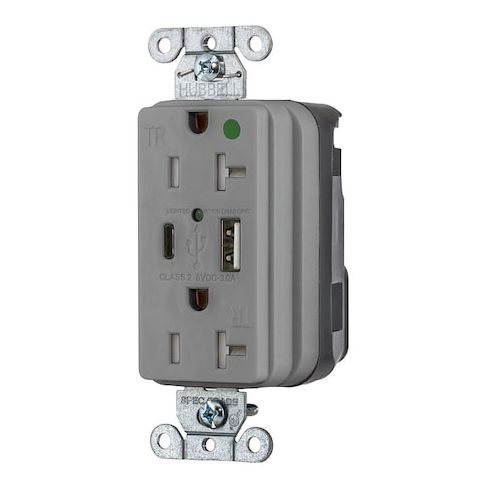

• The HUBBELL SNAP8300UACGY is a duplex straight blade receptacle with integrated USB charging ports, compatible with modular wiring using the SNAPConnect system. This hospital grade device features two power outlets and two fast-charge USB ports (one Type A and one Type C), enabling use of standard plugs and compatible electronic devices. The modular connector supports installation during rough-in, with a snap-in terminal connection after wall completion.





  Key Features of the HUBBELL SNAP8300UACGY Snapconnect Receptacle:





  • Current Rating: 20 A


  • NEMA Configuration: 5-20R duplex receptacle with grounded design


  • USB Ports: Two fast charge ports (Type A & Type C) rated at 3A up to 9V
  • rated for up to 10,000 cycles


  • Contact Material: Copper contacts


  • Tamper Resistant: Built-in tamper resistance enhances user safety


  • Mounting: Flush mount type
  • includes mounting screw and strap hardware


  • Wire Size Compatibility: Accepts wire sizes from 14 AWG to 10 AWG via back-wired modular connections


  • Operating Temperature Range: -40°F to 167°F for varied installation environments


  • Standards Compliance: cULus Listed to UL498 and UL1310
  • Hospital Grade rating ensures suitability in demanding settings
