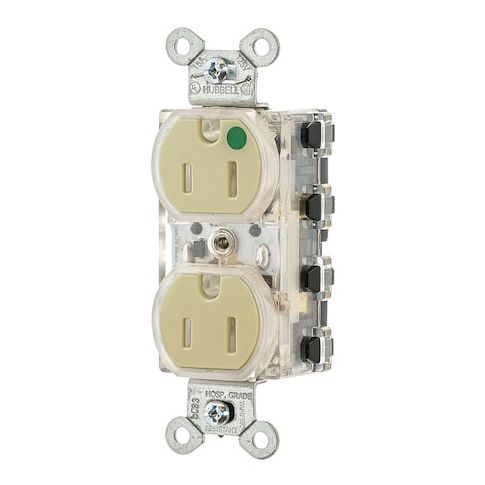

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded MPN:SNAP8200ILTR

• The HUBBELL Hospital Grade SNAPConnect Receptacle is a duplex straight blade receptacle suitable for modular wiring applications in indoor industrial environments. This snapconnect receptacle features a hospital grade rating and allows for efficient installation by utilizing a modular connector that snaps into place

• does not require traditional pigtail wiring. It includes an LED indicator to show power connection status and includes tamper-resistant features.




  Key Features of the HUBBELL Hospital Grade SNAPConnect Receptacle:





  • Connection Type: Modular wiring with straight orientation intended to facilitate installation and device replacement.


  • Current Rating: Rated for 15 A at 125V AC
  • listed for use at full rated current interruption per applicable standards.


  • NEMA Configuration: 5-15R duplex outlets with polarized design
  • supports single phase, two poles, three wires.


  • Tamper Resistant: Features construction intended to limit access to internal contacts.


  • Visual Indicator Lights: Face-mounted LED displays power connection status.


  • Audible Feedback: Produces an audible sound when the connector is engaged during installation.


  • Material Construction: Nylon face, PBT base, polycarbonate housing
  • brass contacts and ground terminals
  • galvanized steel mounting strap
  • stainless steel self-grounding staple
  • zinc plated steel mounting screws included.


  • Operating Temperature Range: -40°F to 167°F (maximum continuous 75°C).


  • Standards Compliance: CSA and UL listed
  • meets UL 94V-2 flammability requirements.
