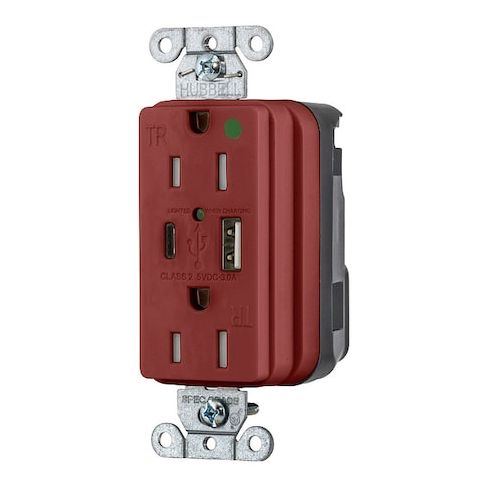

USBReceptacle, 15A, 1/2hp, Rd, Thrmplstc MPN:SNAP8200UACR
The HUBBELL Snapconnect Receptacle is a versatile and convenient solution for residential settings, providing two tamper-resistant outlets and integrated USB charging ports. With its hospital-grade design and thermoplastic housing, it offers a safe and reliable way to charge devices. The receptacle's SNAPConnect technology enables easy installation, while its copper contacts and 15A current rating ensure a secure electrical connection. Ideal for homes, apartments, or offices, this receptacle is perfect for those who want to stay connected and organized. Its compact design and flush mount type make it easy to integrate into any space, providing a seamless and convenient charging experience.
Top product features:
- Contact Material: Copper contacts are used for electrical connections.
- Tamper Resistant Design: The receptacle features a tamper resistant design intended to reduce the risk of foreign object insertion.
- USB Charging Capacity: Two USB ports (Type A & C) are provided for added versatility in residential settings.
Top product applications:
- Office Spaces
- Residential Settings
- Commercial Buildings
The HUBBELL Snapconnect receptacle is a duplex straight blade receptacle designed for modular wiring installations. It features SNAPConnect® technology, allowing the modular connector to be installed during rough-in and quickly snapped into place after wall installation. This hospital grade device provides two tamper resistant outlets and includes integrated USB charging ports—one Type A and one Type C—for added versatility in residential settings.
Key Features of the HUBBELL Snapconnect Receptacle:
- Contact Material: Copper contacts are used for electrical connections.
- Current Rating: Rated for 15 A at 125V AC with NEMA 5-15R configuration.
- USB Charging Capacity: Two USB ports (Type A & C)
- maximum output: 3A at 9V
- rated for 10,000 cycles.
- Grade: Thermoplastic housing
- hospital grade classification.
- Resistance Properties: Tamper resistant design intended to reduce the risk of foreign object insertion.
- Mounting: Flush mount type with included mounting screw and strap
- center-to-center height is 3.81 in.
- Wire Compatibility: Accepts wire sizes from 14 AWG to 10 AWG using back-wiring method via modular connection
- supports three wires (grounded).
- Operating Temperature Range: Operating temperature range: -40°F to 167°F maximum.
- Status Indicator: Equipped with power indicating light for operational status feedback.
- Standards Compliance: UL94 V-2 flammability rating
- complies with cULus Listed to UL498, UL1310 standards
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.20
- Package Width: 2.20
- Package Height: 1.90
- Package Weight: 0.30
