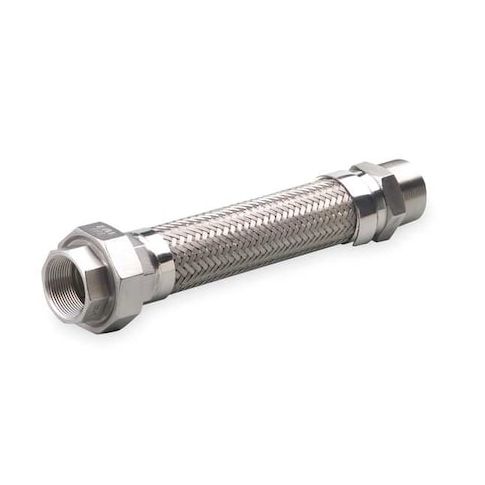

1/4" Dia x 36" L 321 SS Flexible Metal Hose MPN:GM025SHMU360
1/4" Dia x 36" L 321 SS Flexible Metal Hose
This 1/4in Dia x 36in L 321 SS Flexible Metal Hose is designed for demanding applications where flexibility and high temperature resistance are crucial. Suitable for use in aerospace, chemical processing, and power generation industries, this hose assembly features a 321 stainless steel tube and 304 stainless steel cover, providing exceptional strength and corrosion resistance. Its flexible design allows for smooth movement and minimal stress on connected components, while withstanding extreme temperatures from -325°F to 1200°F and pressures up to 1800 psi, making it an ideal solution for high-performance fluid transfer and steam applications.
Top product features:
- Flexible metal hose assembly with a 1/4 inch inside diameter allows for high-pressure fluid transfer.
- The hose is made of 321 stainless steel for high-temperature resistance up to 1200 degrees F.
- The hose has a dynamic minimum bend radius of 3.7 inches for easy installation and maneuverability.
Top product applications:
- Chemical Transfer Lines
- High-Temperature Exhaust Systems
- Fuel Injection Systems
Flexible Metal Hose Assembly, Hose Inside Dia. 1/4 in, Hose Length 36 in, Hose Tube Material 321 Stainless Steel, Hose Cover Material 304 Stainless Steel, Max. Working Pressure @ 70 F 1,800 psi, Temp. Range -325 Degrees to 1200 Degrees F, Dynamic Min. Bend Radius (In.) 3.7 in, Hose Fitting A Material 304 Stainless Steel, Hose Fitting B Material 304 Stainless Steel, Hose Fitting A Type MNPT, Hose Fitting B Type FNPT, Hose Fitting A Size 1/4 in, Hose Fitting B Size 1/4 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.30
- Package Width: 1.30
- Package Height: 1.30
- Package Weight: 0.70
Product info last updated on February 1, 2026 12:48am UTC
Category: Pipes, Valves and Fittings
