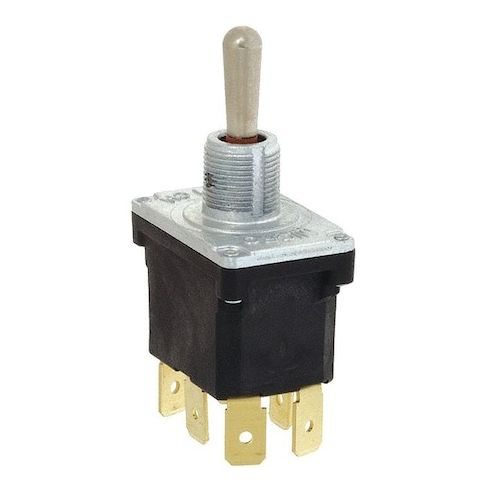

Toggle Switch - DPDT, 10A, IP67/IP68, Metal Lever, Quick Connect Terminals MPN:32NT91-8
The Honeywell NT Series Toggle Switch is a rugged and reliable solution for applications requiring a maintained on/maintained on function in harsh environments. With a double pole, double throw (DPDT) configuration and 10A contact ratings, it's ideal for use in control panels, machinery, and equipment. The switch's IP67/IP68 rating ensures resistance to dust and water ingress, making it perfect for use in outdoor or industrial settings. Its compact design and quick connect terminals simplify installation and maintenance, reducing downtime and increasing productivity. Suitable for use in a variety of applications, including manufacturing, construction, and oil and gas.
Top product features:
- Double pole, double throw (DPDT) switch function with maintained on/maintained on configuration
- Quick connect tab type terminals with six connections
- Silver-colored metal lever actuator with a length of 0.67 in
Top product applications:
- Motor Control Circuits
- Industrial Control Panels
- High-Temperature Applications
Honeywell NT Series Toggle Switch is a double pole, double throw (DPDT) switch suitable for applications within the specified environmental ratings. It features a maintained on/maintained on function with six quick connect terminals and is constructed with a flat base and standard metal lever actuator. The switch includes sealing between the toggle lever and bushing, as well as between the cover and case, constructed with features intended to provide resistance as specified by IP67/IP68 and NEMA ratings.
Key Features:
- - Contact Ratings: 10A at 125V AC or 250V AC
- 18A at 28V DC
- - Maximum horsepower rating: 1/2 hp
- - Actuator: Silver-colored metal lever
- length of 0.67 in
- - Mounting Hole Diameter: 0.47 in
- stem thread size of 15/32-32 UNS-2A
- - Environmental Ratings: IP67/IP68 ingress protection
- NEMA types 3, 3R, 4, and 13
- - Operating Temperature Range: -85°F to +160°F (-40°C to +71°C)
- - Resistance Properties: Rated for dust ingress protection (IP67/IP68), shock resistance per product specifications
- rated watertight per IP67/IP68
- rated for operation within -85°F to +160°F (-40°C to +71°C)
- rated for vibration exposure as specified by manufacturer testing.
- - Terminals: Quick connect tab type with six connections (DPDT configuration)
- - Overall Dimensions: Height—2.51 in
- Width—0.62 in
- Depth—1.12 in
- - Certifications: CE marked
- CSA and UL listed
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 0.10
