Pressure Switch - 5000 Series, SPDT, 0.5-150 psi, 1/8" MNPT, IP54 MPN:76074-B00000600-01
Free Shipping
In Stock

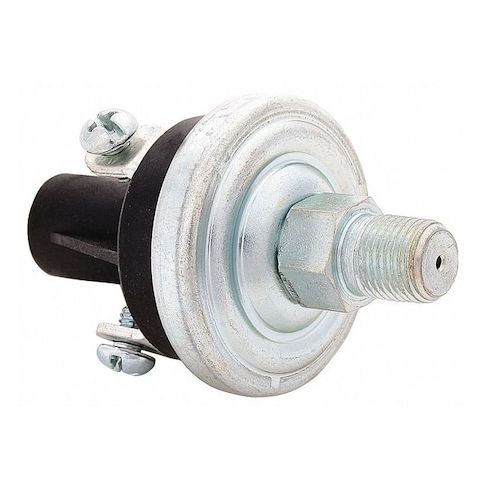

The Honeywell 5000 Series Pressure Switch is a robust and reliable solution for applications requiring continuous operation within specified parameters. Its compact design and field-adjustable settings make it ideal for use in various industries, including oil and gas, chemical processing, and HVAC. The switch features a Kapton diaphragm compatible with various fluids and offers adjustable deadband settings, allowing for precise control over pressure thresholds. With its IP54 rated enclosure and 1/8-27 MNPT pressure connection, this switch is perfect for applications where dust and splash resistance are critical, such as in outdoor or harsh environments.
Top product features:
- Compact design
- Field-adjustable settings
- IP54 rated enclosure for dust and splash resistance
Top product applications:
- Industrial Process Control
- Oil and Gas Exploration and Production
- Power Generation and Distribution
Honeywell's 5000 Series Pressure Switch is rated for use in applications requiring continuous operation within specified parameters, featuring a compact and constructed with materials selected for robustness under normal operating conditions. This pressure switch uses a Kapton diaphragm compatible with various fluids and offers field-adjustable settings. It is equipped with an SPDT-NO/NC contact form and includes a 1/8-27 MNPT pressure connection.
Key features:
- - AC Contact Rating: 0.5A @ 240V, 1A @ 120V
- - DC Contact Rating: 15A @ 6V, 8A @ 12V, 4A @ 24V
- - Actuation Type: Diaphragm
- - Action: Standard
- - Deadband Adjustability: Adjustable within a range of 51 to 90 psi
- - Factory Off Setting: Set at 60 psi (field adjustable)
- - Pressure Range: Operates between minimum of 0.5 psi to maximum of 150 psi
- proof pressure up to 500 psi
- - IP54 rated enclosure for dust and splash resistance
- - Pressure Connection Type/Port Type: Threaded male NPT, size 1/8"-27
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 2.40
- Package Weight: 0.15
